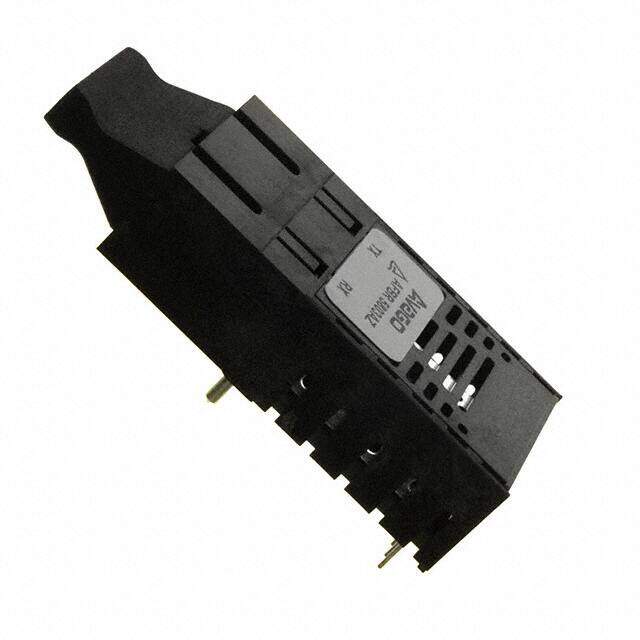

AFBR-5803AZ image
Favorite
AFBR-5803AZ image
Favorite

AFBR-5803AZ

Broadcom Limited
RoHS
RoHS RoHS compliant
Package Module
Category Optoelectronics / Fiber Optics - Transceiver Modules
Description BROADCOM LIMITED - AFBR-5803AZ - TRANSCEIVER, ETHERNET, DUPLEX, SC
PDF
/
Buying Options
Total Price: USD $40.17
Unit Price: USD $40.172
≥1 USD $40.172
≥10 USD $31.38432
≥100 USD $29.81484
Inventory: 498
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Width 12mm
Length 25.4mm
Height 24.8mm

Technical

Communication Standard ATM, OC-3C, SONET
Optical Power Output-Nom 0.039mW
Emitter/Detector Type LASER DIODE, PIN PHOTODIODE
Operating Wavelength-Nom 1308 nm
Built-in Feature AMPLIFIER
Fiber Type 50/125, 62.5/125, MMF
Wavelength - Peak 1.3μm
Data Rate 100Mbps
Output Current 50mA
Operating Supply Voltage 5V
Max Output Current 50mA
Supply Voltage 3.3V
Voltage - Supply 3.3V 5V
HTS Code 8517.62.00.50
Applications General Purpose
Min Operating Temperature -10°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn)
Connector Type SC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2005

Physical

Number of Pins 9
Package / Case Module
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 16 Weeks
