52559-2570
RoHS
/
Package /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description

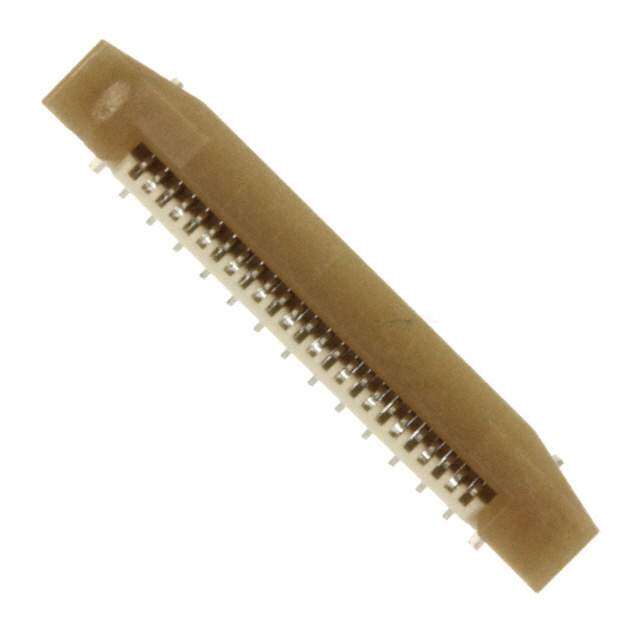

CONN FFC VERT 25POS 0.50MM SMD
PDF
/
Inventory: 4750
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material PHOSPHOR BRONZE
Mounting Type BOARD
Insulation Material NYLON
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Board Mounting Option FITTING NAIL
Technical
Published 2011
JESD-609 Code e3
Pbfree Code icon-pbfree yes
ECCN Code EAR99
Connector Type FFC/FPC CONNECTOR
Number of Rows 1
Additional Feature ROHS, ELV COMPL & EMBOSSED PKG
HTS Code 8536.69.40.51
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating TIN BISMUTH OVER NICKEL
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 25
Terminal Pitch 0.5mm
Reach Compliance Code compliant
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.717 inch
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Operating Temperature (Max) 85°C
Body Breadth 0.091 inch
Contact Gender FEMALE
Operating Temperature (Min) -20°C
UL Flammability Code 94V-0
Body Depth 0.154 inch
Rated Current (Signal) 0.5A
Contact Style SINGLE PRONG
Contact Resistance 20mOhm
Insulation Resistance 50000000Ohm
Mating Contact Pitch 0.02 inch
Termination Type SURFACE MOUNT
Dielectric Withstanding Voltage 250VAC V
PCB Contact Row Spacing 2.794 mm
Durability 20 Cycles
Contact Finish Termination TIN OVER NICKEL
Contact Pattern RECTANGULAR
Insertion Force-Max ZIF N
Withdrawl Force-Min ZIF N
Insulator Color BEIGE
Dimensions
Plating Thickness 39u inch
Compliance
RoHS Status RoHS Compliant
Alternative Model
