5051102291
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description

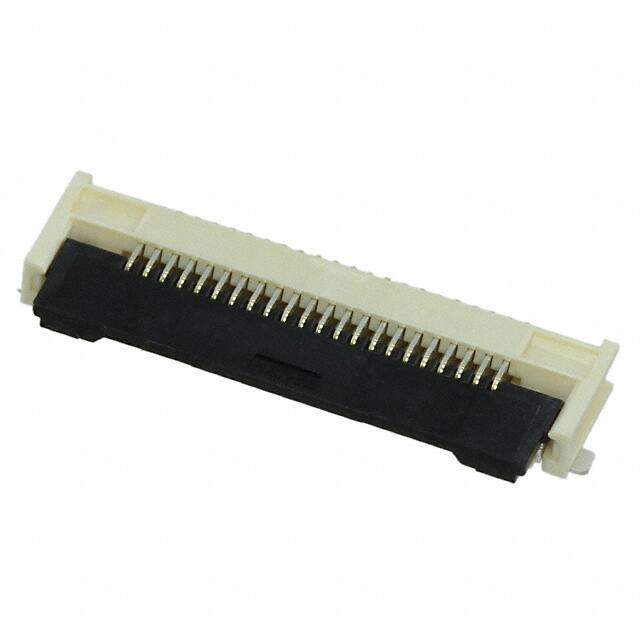

CONN FFC/FPC BOTTOM 22P .5MM R/A
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.6248
≥1 USD $0.6248
≥10 USD $0.51744
≥100 USD $0.431024
≥500 USD $0.379386
Inventory: 55660
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount, Right Angle
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Mounting Option 1 LOCKING
Actuator Material Polyamide (PA), Nylon, Glass Filled
Board Mounting Option FITTING NAIL
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2015
Series Easy-On FD19 505110
JESD-609 Code e4
Feature Solder Retention, Zero Insertion Force (ZIF)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type FFC/FPC CONNECTOR
Number of Positions 22
Number of Rows 1
Voltage - Rated 50V
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 0.5A
Pitch 0.020 0.50mm
Total Number of Contacts 22
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 0.618 inch
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Body Breadth 0.075 inch
Contact Gender FEMALE
UL Flammability Code 94V-0
Housing Color Beige
Body Depth 0.159 inch
Contact Style BELLOWED TYPE
Contact Resistance 40mOhm
Insulation Resistance 50000000Ohm
Durability 10 Cycles
Contact Pattern RECTANGULAR
Insertion Force-Max ZIF N
Mating Cycles 25
Flat Flex Type FFC, FPC
Connector/Contact Type Contacts, Bottom
Cable End Type Tabbed, Tapered
Locking Feature Flip Lock
Actuator Color Black
Dimensions
Contact Finish Thickness 1.97μin 0.050μm
Plating Thickness 2μin
Height Above Board 0.075 1.90mm
FFC, FCB Thickness 0.30mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
