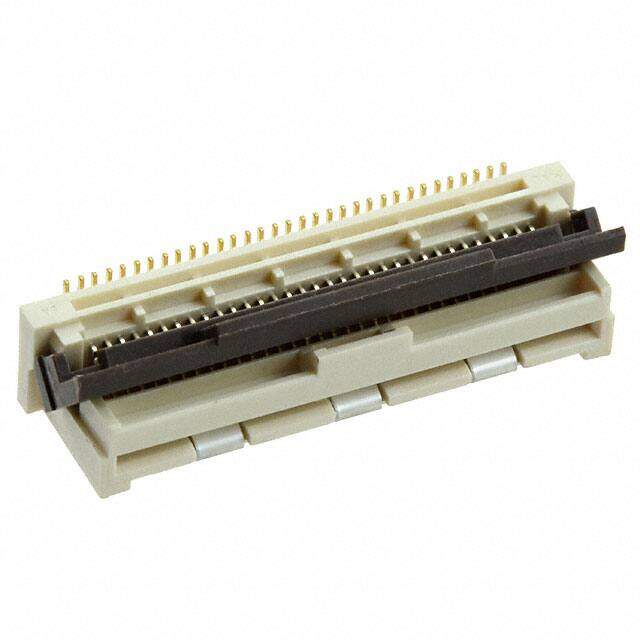

5022313300
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description
CONN FFC VERT 33POS 0.50MM SMD
PDF
/
Buying Options
Total Price: USD $2.38
Unit Price: USD $2.376
≥1 USD $2.376
≥10 USD $2.0944
≥100 USD $1.665664
Inventory: 1180
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
FFC, FCB Thickness 0.30mm
Height Above Board 0.238 6.05mm
Plating Thickness 4μin
Technical
Actuator Color Brown
Locking Feature Flip Lock
Cable End Type Straight
Connector/Contact Type Contacts, Vertical - 1 Sided
Flat Flex Type FFC
Mating Cycles 20
Withdrawl Force-Min ZIF N
Insertion Force-Max ZIF N
Contact Pattern RECTANGULAR
Insulation Resistance 50000000Ohm
Contact Resistance 40mOhm
Contact Style BELLOWED TYPE
Body Depth 0.238 inch
Housing Color Natural
Contact Gender FEMALE
Body Breadth 0.169 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Body Length or Diameter 0.78 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Total Number of Contacts 33
Pitch 0.020 0.50mm
Current Rating (Amps) 0.4A
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Additional Feature POLARIZED, EASY-ON
Voltage - Rated 50V
Number of Rows 1
Number of Positions 33
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Solder Retention, Zero Insertion Force (ZIF)
JESD-609 Code e3
Series Easy-On 502231
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -25°C~85°C
Physical
Mounting Option 2 LOCKING
Actuator Material Polyamide (PA9T), Nylon 9T, Glass Filled
Mounting Option 1 LATCH & EJECT
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 17 Weeks
