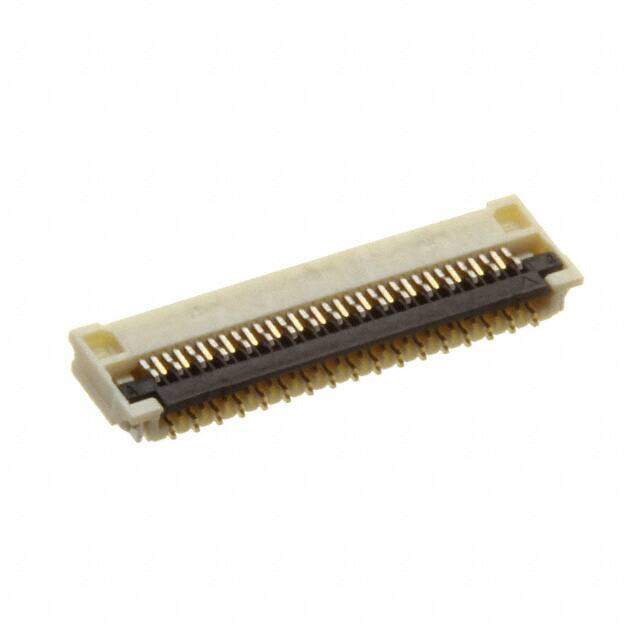

5020783310
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description
CONN FPC BOTTOM 33POS 0.25MM R/A
PDF
/
Buying Options
Total Price: USD $1.81
Unit Price: USD $1.8128
≥1 USD $1.8128
≥10 USD $1.59896
≥100 USD $1.279344
Inventory: 14454
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Surface Mount, Right Angle
Housing Material Plastic, Glass Filled
Mounting Option 1 LOCKING
Actuator Material Plastic, Glass Filled
Board Mounting Option FITTING NAIL
Technical
Operating Temperature -20°C~85°C
Packaging Tape & Reel (TR)
Published 2016
Series Easy-On 502078
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Number of Positions 33
Number of Rows 1
Voltage - Rated 50V
Additional Feature BOTTOM CONTACT STYLE, EASY-ON, POLARIZED
HTS Code 8536.69.40.51
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 0.2A
Pitch 0.010 0.25mm
Total Number of Contacts 33
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Actuator Color Black
Locking Feature Flip Lock
Cable End Type Tapered
Connector/Contact Type Contacts, Bottom
Flat Flex Type FPC
Mating Cycles 10
Contact Pattern RECTANGULAR
Insulation Resistance 50000000Ohm
Contact Resistance 80mOhm
Contact Style BELLOWED TYPE
Housing Color Beige
UL Flammability Code 94V-0
Contact Gender FEMALE
Body Breadth 0.394 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Body Length or Diameter 0.394 inch
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0, UL94 HB
Dimensions
FFC, FCB Thickness 0.20mm
Height Above Board 0.039 1.00mm
