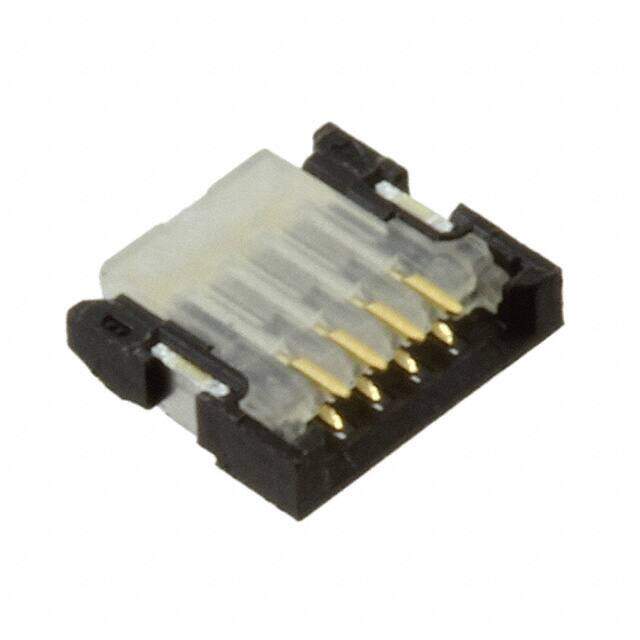

5014610491

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description CONN FPC BOTTOM 4POS 0.50MM R/A
PDF
/
Buying Options
Total Price: USD $0.8
Unit Price: USD $0.8008
≥1 USD $0.8008
≥10 USD $0.66352
≥100 USD $0.552816
≥500 USD $0.44227
Inventory: 35678
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Contact Material Phosphor Bronze
Mounting Type Surface Mount, Right Angle
Housing Material Polyamide (PA), Nylon, Glass Filled
Mounting Option 1 LOCKING
Actuator Material Polyamide (PA46), Nylon 4/6, Glass Filled

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2013
Series BackFlip 501461
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Number of Positions 4
Number of Rows 1
Gender Receptacle
Subcategory Headers and Edge Type Connectors
Current Rating (Amps) 0.3A
Pitch 0.020 0.50mm
Total Number of Contacts 4
Orientation Right Angle
Depth 3.2mm
Current Rating 300mA
Contact Finish Gold
Voltage - Rated AC 50V
Reliability COMMERCIAL
Housing Color Black
Insulation Resistance 50MOhm
Max Voltage Rating (AC) 50V
Contact Pattern RECTANGULAR
Mating Cycles 20
Halogen Free Low Halogen
Flat Flex Type FPC
Connector/Contact Type Contacts, Bottom
Cable End Type Notched
Locking Feature Flip Lock, Backlock
Actuator Color White
Stackable No
Contact Location Bottom

Dimensions

Length 3.5mm
Contact Finish Thickness 3.94μin 0.10μm
Height Above Board 0.031 0.80mm
FFC, FCB Thickness 0.12mm

Compliance

Material Flammability Rating UL94 HB
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 HB
