0545502471
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description

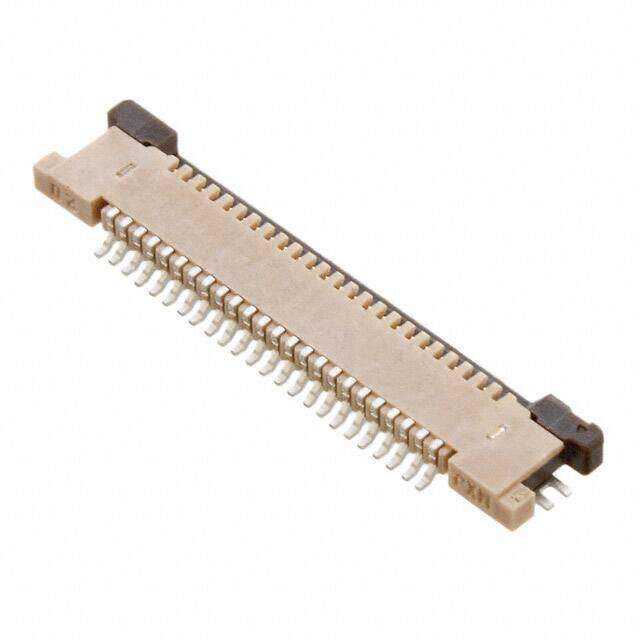

CONN FFC TOP 24POS 0.50MM R/A
PDF
/
Inventory: 4894
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount, Right Angle
Housing Material Liquid Crystal Polymer (LCP)
Mounting Option 1 LOCKING
Actuator Material Polyphenylene Sulfide (PPS)
Board Mounting Option FITTING NAIL
Technical
Operating Temperature -20°C~85°C
Packaging Tape & Reel (TR)
Series Easy-On 54550
JESD-609 Code e3
Feature Solder Retention, Zero Insertion Force (ZIF)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type FFC/FPC CONNECTOR
Number of Positions 24
Number of Rows 1
Voltage - Rated 50V
Additional Feature EASY-ON, POLARIZED
HTS Code 8536.69.40.51
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 0.5A
Pitch 0.020 0.50mm
Total Number of Contacts 24
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 0.677 inch
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Body Breadth 0.047 inch
Contact Gender FEMALE
Body Depth 0.152 inch
Contact Style SINGLE PRONG
Contact Resistance 40mOhm
Insulation Resistance 50000000Ohm
Contact Pattern RECTANGULAR
Insertion Force-Max ZIF N
Withdrawl Force-Min ZIF N
Mating Cycles 20
Flat Flex Type FFC, FPC
Connector/Contact Type Contacts, Top
Cable End Type Straight, Tapered
Locking Feature Slide Lock
Dimensions
Height Above Board 0.047 1.20mm
FFC, FCB Thickness 0.30mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
