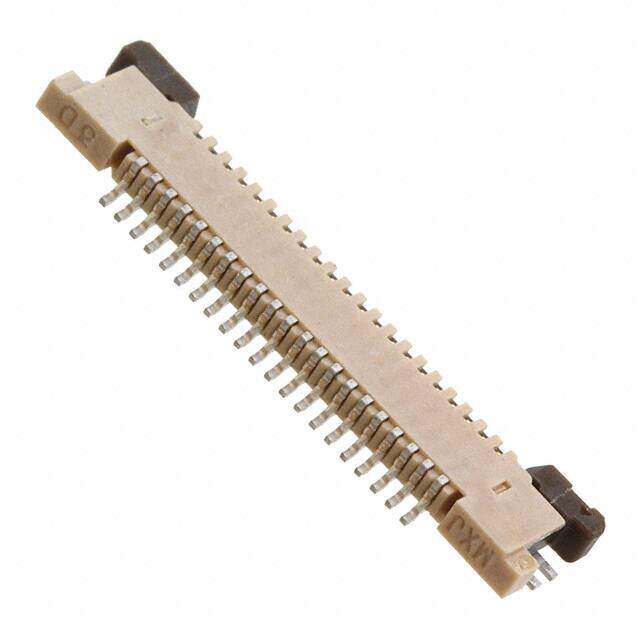

0545502171
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description
Conn FPC Connector SKT 21 POS 0.5mm Solder RA SMD Easy-On? T/R
PDF
/
Buying Options
Total Price: USD $2.45
Unit Price: USD $2.4464
≥1 USD $2.4464
≥10 USD $2.15072
≥100 USD $1.710896
Inventory: 730
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount, Right Angle
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyphenylene Sulfide (PPS)
Technical
Operating Temperature -20°C~85°C
Packaging Tape & Reel (TR)
Series Easy-On 54550
JESD-609 Code e3
Feature Solder Retention, Zero Insertion Force (ZIF)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type FFC/FPC CONNECTOR
Number of Positions 21
Number of Rows 1
Voltage - Rated 50V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 0.5A
Pitch 0.020 0.50mm
Total Number of Contacts 21
Contact Finish Gold
Contact Gender FEMALE
Mating Cycles 20
Flat Flex Type FFC, FPC
Connector/Contact Type Contacts, Top
Cable End Type Straight, Tapered
Locking Feature Slide Lock
Dimensions
Height Above Board 0.047 1.20mm
FFC, FCB Thickness 0.30mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
