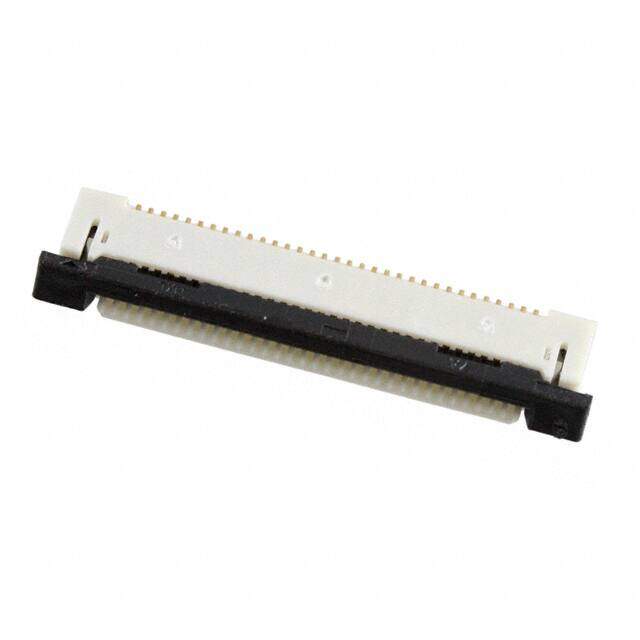

0541323362
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description
CONN FFC BOTTOM 33POS 0.50MM R/A
PDF
/
Buying Options
Total Price: USD $1.91
Unit Price: USD $1.9096
≥1 USD $1.9096
≥10 USD $1.62712
≥100 USD $1.3442
Inventory: 7674
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
FFC, FCB Thickness 0.30mm
Height Above Board 0.079 2.00mm
Contact Finish Thickness 3.94μin 0.10μm
Technical
Actuator Color Black
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Connector/Contact Type Contacts, Bottom
Flat Flex Type FFC, FPC
Mating Cycles 20
Withdrawl Force-Min ZIF N
Insertion Force-Max ZIF N
Contact Pattern RECTANGULAR
Insulation Resistance 50000000Ohm
Contact Style SINGLE PRONG
Body Depth 0.197 inch
Housing Color White
UL Flammability Code 94V-0
Contact Gender FEMALE
Body Breadth 0.079 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Body Length or Diameter 0.866 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Total Number of Contacts 33
Pitch 0.020 0.50mm
Current Rating (Amps) 0.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.51
Additional Feature EASY-ON, POLARIZED
Voltage - Rated 50V
Number of Rows 1
Number of Positions 33
Connector Type FFC/FPC CONNECTOR
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Solder Retention, Zero Insertion Force (ZIF)
JESD-609 Code e4
Series 54132
Packaging Tape & Reel (TR)
Operating Temperature -20°C~85°C
Physical
Board Mounting Option FITTING NAIL
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Mounting Option 1 LOCKING
Housing Material Polyamide (PA46), Nylon 4/6, Glass Filled
Mounting Type Surface Mount, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 12 Weeks
