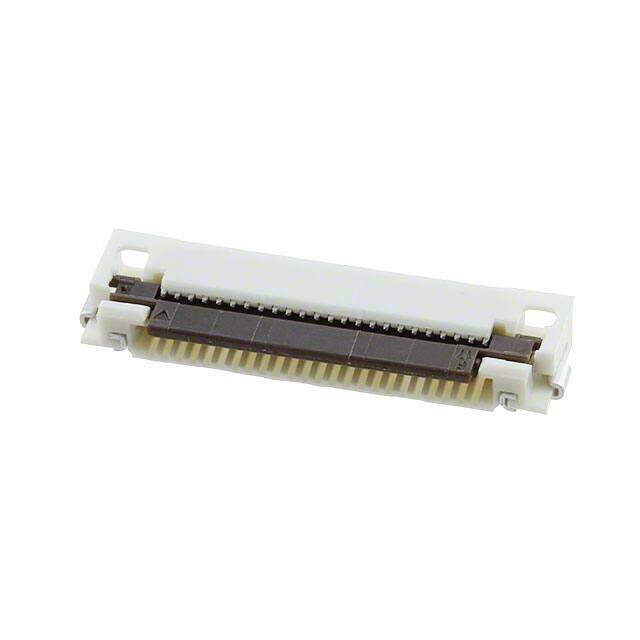

0528922433
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description
CONN FFC BOTTOM 24POS 0.50MM R/A
PDF
/
Buying Options
Total Price: USD $1.56
Unit Price: USD $1.5576
≥1 USD $1.5576
≥10 USD $1.32616
≥100 USD $1.0956
Inventory: 1048
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount, Right Angle
Housing Material Polyamide (PA), Nylon, Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series Easy-On 52892
Feature Solder Retention, Zero Insertion Force (ZIF)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type FFC/FPC CONNECTOR
Number of Positions 24
Number of Rows 1
Voltage - Rated 50V
HTS Code 8536.69.40.51
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 0.5A
Pitch 0.020 0.50mm
Total Number of Contacts 24
Contact Finish Tin Bismuth
Contact Gender FEMALE
UL Flammability Code 94V-0
Housing Color White
Mating Cycles 20
Flat Flex Type FFC, FPC
Connector/Contact Type Contacts, Bottom
Cable End Type Straight, Tapered
Locking Feature Flip Lock
Actuator Color Brown
Dimensions
Contact Finish Thickness 39.4μin 1.00μm
Height Above Board 0.079 2.00mm
FFC, FCB Thickness 0.30mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
