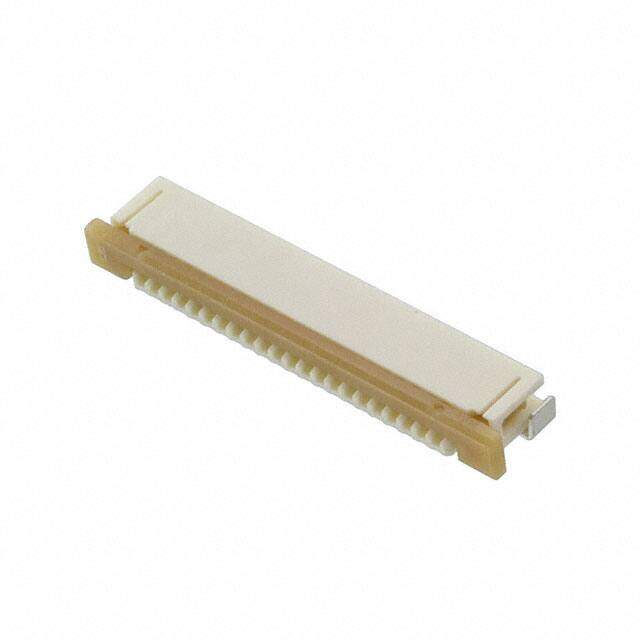

0522712269

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description Conn FPC Connector SKT 22 POS 1mm Solder RA SMD Easy-On? T/R
PDF
/
Buying Options
Total Price: USD $2.21
Unit Price: USD $2.2088
≥1 USD $2.2088
≥10 USD $1.87968
≥100 USD $1.552584
Inventory: 4265
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

FFC, FCB Thickness 0.30mm
Height Above Board 0.118 3.00mm
Contact Finish Thickness 3.94μin 0.10μm

Technical

Locking Feature Slide Lock
Cable End Type Tapered
Connector/Contact Type Contacts, Bottom
Flat Flex Type FPC
Insulator Color NATURAL
Mating Cycles 30
Contact Pattern RECTANGULAR
Insulation Resistance 100000000Ohm
Contact Resistance 20mOhm
PCB Contact Pattern RECTANGULAR
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL, CSA
Total Number of Contacts 22
Pitch 0.039 1.00mm
Current Rating (Amps) 0.5A
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.51
Voltage - Rated 50V
Number of Rows 1
Number of Positions 22
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention, Zero Insertion Force (ZIF)
JESD-609 Code e3
Series 52271
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Actuator Material Polyphenylene Sulfide (PPS)
Mounting Option 1 LOCKING
Housing Material Polyamide (PA46), Nylon 4/6
Mounting Type Surface Mount, Right Angle
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 15 Weeks
