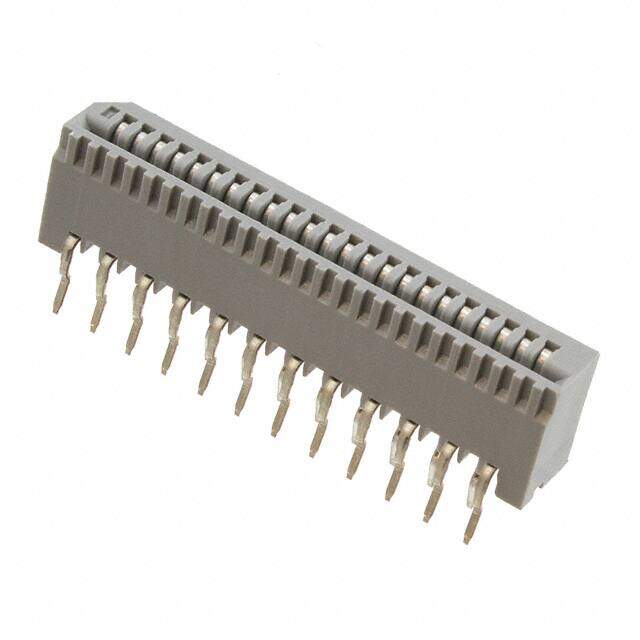

0520452345
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description
Conn FFC/FPC Connector F 23 POS 1.25mm Solder ST Thru-Hole Tray
PDF
/
Inventory: 7531
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT), Polyester
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series 52045
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin
Connector Type FFC/FPC CONNECTOR
Number of Positions 23
Voltage - Rated 200V
Current Rating (Amps) 1A
Pitch 0.049 1.25mm
Contact Finish Tin
Housing Color Gray
Flat Flex Type FFC, FPC
Connector/Contact Type Contacts, Vertical - 1 Sided
Cable End Type Straight
Dimensions
Contact Finish Thickness 35.4μin 0.90μm
Height Above Board 0.315 8.00mm
FFC, FCB Thickness 0.30mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
