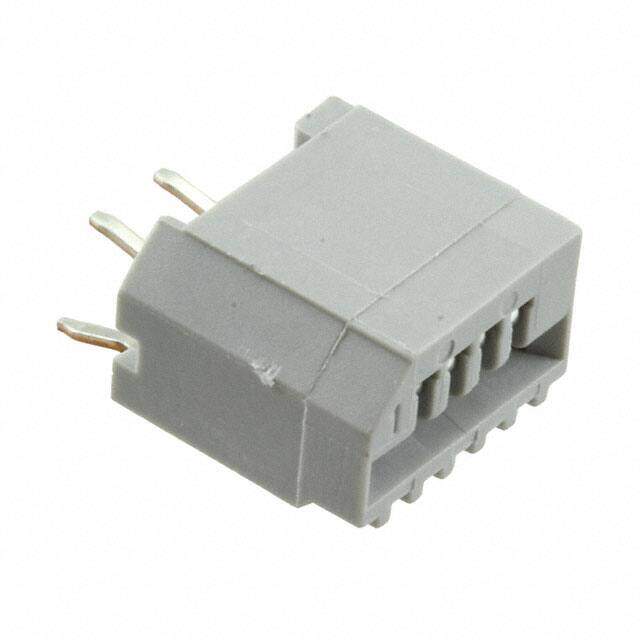

0520450445 image
Favorite
0520450445 image
Favorite

0520450445

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description Conn FFC/FPC Connector SKT 4 POS 1.25mm Solder ST Thru-Hole Tray
PDF
/
Inventory: 9582
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

FFC, FCB Thickness 0.30mm
Height Above Board 0.315 8.00mm
Contact Finish Thickness 35.4μin 0.90μm

Technical

Cable End Type Straight
Connector/Contact Type Contacts, Vertical - 1 Sided
Flat Flex Type FFC, FPC
Body/Shell Style RECEPTACLE
Housing Color Gray
Contact Gender FEMALE
Contact Finish Tin
Total Number of Contacts 4
Pitch 0.049 1.25mm
Current Rating (Amps) 1A
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 200V
Number of Rows 1
Number of Positions 4
Connector Type FFC/FPC CONNECTOR
ECCN Code EAR99
Termination Kinked Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Pbfree Code yes
JESD-609 Code e3
Series 52045
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Housing Material Polybutylene Terephthalate (PBT), Polyester
Mounting Type Through Hole
Contact Material Phosphor Bronze
