0512961294
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description

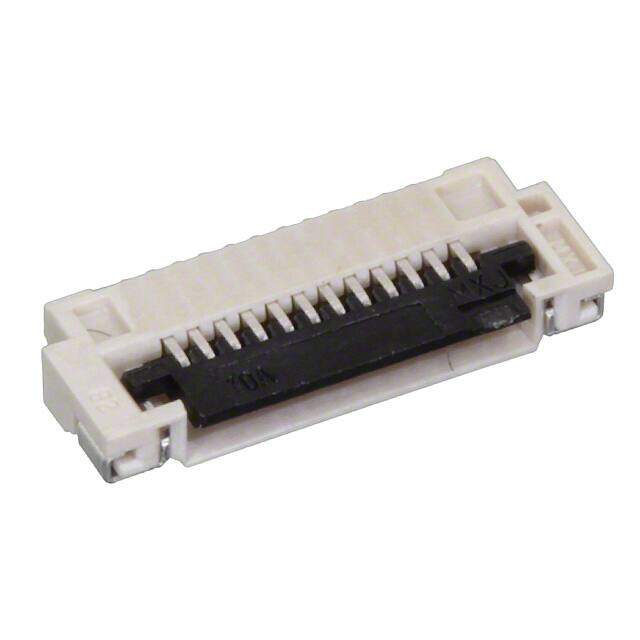

Conn FFC/FPC Connector SKT 12 POS 0.5mm Solder RA SMD Easy-On? T/R
PDF
/
Buying Options
Total Price: USD $1.94
Unit Price: USD $1.9448
≥1 USD $1.9448
≥10 USD $1.6544
≥100 USD $1.366992
≥500 USD $1.079223
Inventory: 3703
Minimum: 1
-
+
Technical Details
Technical
PCB Contact Pattern RECTANGULAR
Body Breadth 0.051 inch
Contact Gender FEMALE
Housing Color Beige
Body Depth 0.169 inch
Contact Style BELLOWED TYPE
Contact Resistance 40mOhm
Insulation Resistance 50000000Ohm
Contact Pattern RECTANGULAR
Insertion Force-Max ZIF N
Withdrawl Force-Min ZIF N
Mating Cycles 20
Flat Flex Type FFC, FPC
Connector/Contact Type Contacts, Bottom
Cable End Type Straight, Tapered
Locking Feature Flip Lock
Actuator Color Black
Number Of PCB Rows 1
Body Length or Diameter 0.382 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Total Number of Contacts 12
Pitch 0.020 0.50mm
Current Rating (Amps) 0.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Additional Feature EASY-ON, POLARIZED
Voltage - Rated 50V
Number of Rows 1
Number of Positions 12
Connector Type FFC/FPC CONNECTOR
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Solder Retention, Zero Insertion Force (ZIF)
JESD-609 Code e4
Series Easy-On 51296
Packaging Tape & Reel (TR)
Operating Temperature -20°C~85°C
Dimensions
Contact Finish Thickness 3.94μin 0.10μm
Height Above Board 0.051 1.30mm
FFC, FCB Thickness 0.30mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Physical
Actuator Material Polyamide (PA9T), Nylon 9T, Glass Filled
Mounting Option 1 LOCKING
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type Surface Mount, Right Angle
Contact Material Phosphor Bronze
