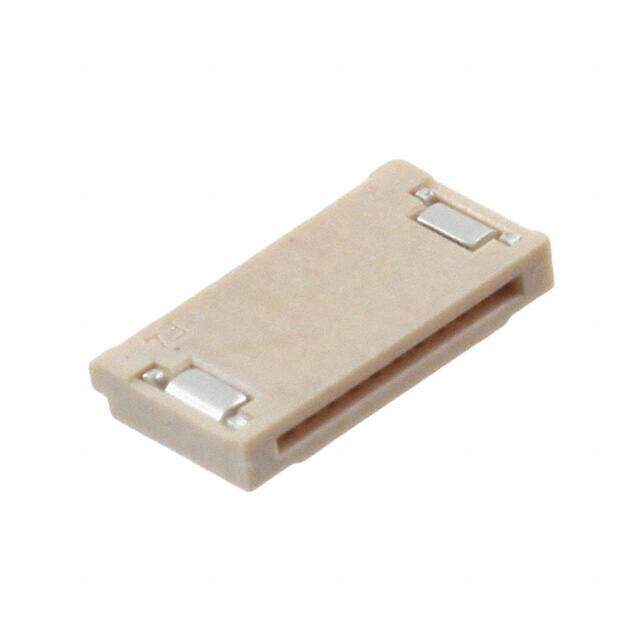

0512811094
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description
CONN FFC FPC 10POS 0.50MM R/A
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.763175
≥1 USD $0.763175
≥10 USD $0.719977
≥100 USD $0.679219
≥500 USD $0.640778
≥1000 USD $0.604513
Inventory: 7036
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
FFC, FCB Thickness 0.30mm
Height Above Board 0.047 1.20mm
Contact Finish Thickness 3.94μin 0.10μm
Technical
Cable End Type Straight, Tapered
Connector/Contact Type Contacts, Top and Bottom
Flat Flex Type FFC, FPC
Insulator Color NATURAL
Mating Cycles 20
Contact Pattern RECTANGULAR
Dielectric Withstanding Voltage 500VAC V
Insulation Resistance 50000000Ohm
Reliability COMMERCIAL
Contact Finish Gold
Total Number of Contacts 10
Pitch 0.020 0.50mm
Current Rating (Amps) 0.5A
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.51
Voltage - Rated 50V
Number of Rows 1
Number of Positions 10
Connector Type FFC/FPC CONNECTOR
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
Series 51281
Packaging Cut Tape (CT)
Operating Temperature -20°C~85°C
Physical
Mounting Option 1 LOCKING
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type Surface Mount, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 17 Weeks
