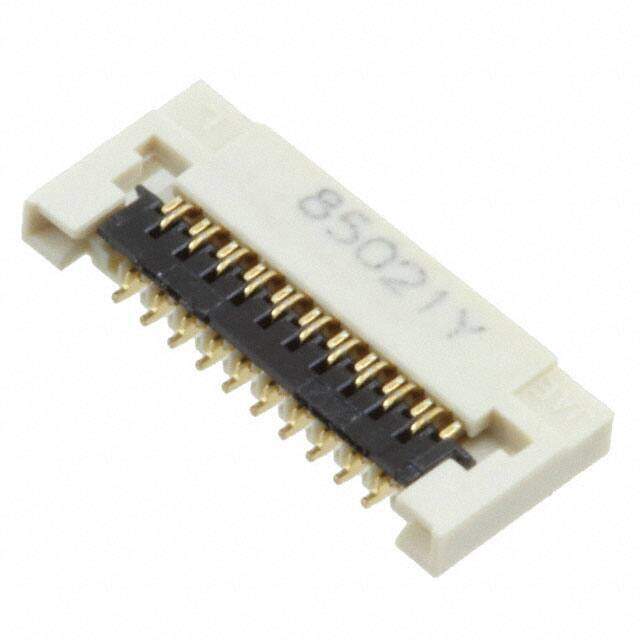

FF0221SS1
RoHS
/
Package /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description
FFC & FPC Connectors 21P Lo-Pro FPC Fine Pitch .3mm
PDF
/
Inventory: 8470
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
FFC, FCB Thickness 0.12mm
Height Above Board 0.047 1.20mm
Contact Finish Thickness 3.94μin 0.10μm
Technical
Contact Location Bottom
Actuator Color Black
Locking Feature Flip Lock
Cable End Type Straight
Connector/Contact Type Contacts, Bottom
Flat Flex Type FPC
Mating Cycles 20
Wire/Cable Type Straight
Insulation Resistance 100MOhm
Housing Color White
Number of Contacts 21
Lead Pitch 300μm
Contact Finish Gold
Current Rating 350mA
Pitch 0.012 0.30mm
Current Rating (Amps) 0.35A per Contact
Voltage - Rated 50V
Gender Female
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Positions 21
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Zero Insertion Force (ZIF)
Series FF02
Published 2005
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Actuator Material Polyphenylene Sulfide (PPS)
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Gold
Contact Material Copper Alloy
