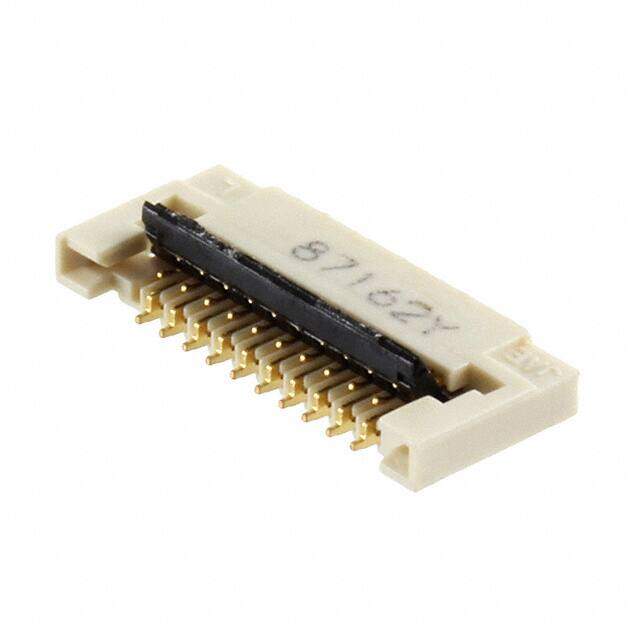

FF0221SL1
RoHS
/
Package /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description
CONN FPC BOTTOM 21POS 0.30MM R/A
PDF
/
Inventory: 7176
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyphenylene Sulfide (PPS)
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2005
Series FF02
Feature Zero Insertion Force (ZIF)
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Number of Positions 21
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Rated 50V
Current Rating (Amps) 0.35A per Contact
Pitch 0.012 0.30mm
Current Rating 350mA
Contact Finish Gold
Housing Color White
Wire/Cable Type Straight
Mating Cycles 20
Flat Flex Type FPC
Connector/Contact Type Contacts, Bottom
Cable End Type Straight
Locking Feature Flip Lock
Actuator Color Black
Dimensions
Contact Finish Thickness 3.94μin 0.10μm
Height Above Board 0.047 1.20mm
FFC, FCB Thickness 0.12mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
