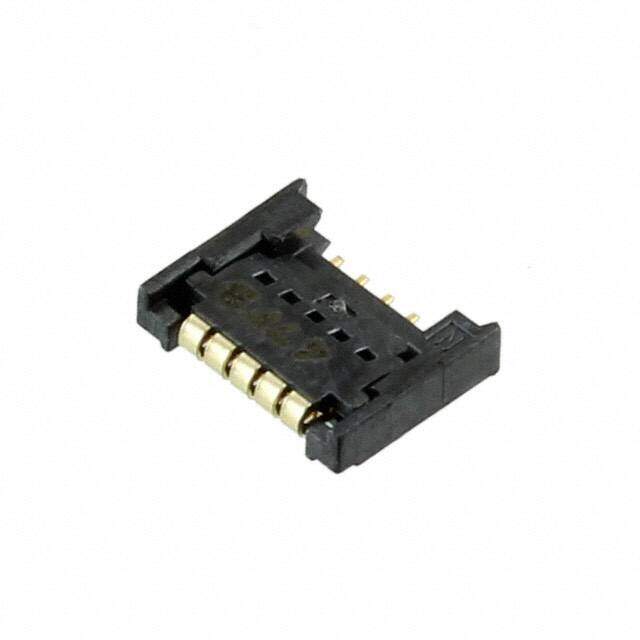

FA1005SA1-R8000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description
CONN FPC 5POS 0.50MM R/A
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.0736
≥1 USD $1.0736
≥10 USD $0.90464
≥100 USD $0.867328
≥500 USD $0.848848
≥1000 USD $0.811976
≥3000 USD $0.738144
Inventory: 7586
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Housing Material Plastic
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2012
Series FA10
Feature Low Insertion Force (LIF)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Number of Positions 5
Voltage - Rated 50V
Current Rating (Amps) 0.5A per Contact
Pitch 0.020 0.50mm
Current Rating 500mA
Contact Finish Gold
Housing Color Black
Mating Cycles 20
Flat Flex Type FPC
Connector/Contact Type Contacts, Top and Bottom
Cable End Type Tabbed
Dimensions
Contact Finish Thickness 3.94μin 0.10μm
Height Above Board 0.035 0.88mm
FFC, FCB Thickness 0.20mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
