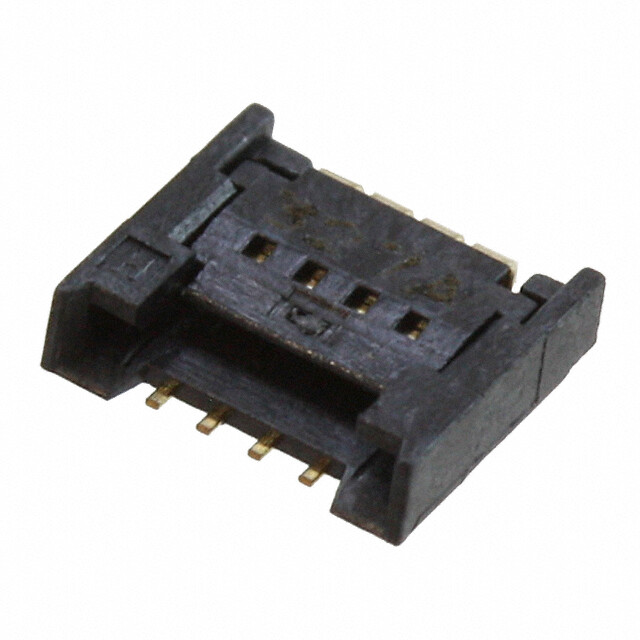

FA1004SA1-R8000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description
CONN FPC 4POS 0.50MM R/A
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.6688
≥1 USD $0.6688
≥10 USD $0.58344
≥100 USD $0.533632
≥500 USD $0.502304
≥1000 USD $0.481272
≥3000 USD $0.439437
Inventory: 7268
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
FFC, FCB Thickness 0.20mm
Height Above Board 0.035 0.88mm
Contact Finish Thickness 3.94μin 0.10μm
Technical
Contact Location Opposite Side
Cable End Type Tabbed
Connector/Contact Type Contacts, Top and Bottom
Flat Flex Type FPC
Mating Cycles 20
Housing Color Black
Contact Finish Gold
Current Rating 500mA
Pitch 0.020 0.50mm
Current Rating (Amps) 0.5A per Contact
Voltage - Rated 50V
Number of Positions 4
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Low Insertion Force (LIF)
Series FA10
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Housing Material Plastic
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 14 Weeks
