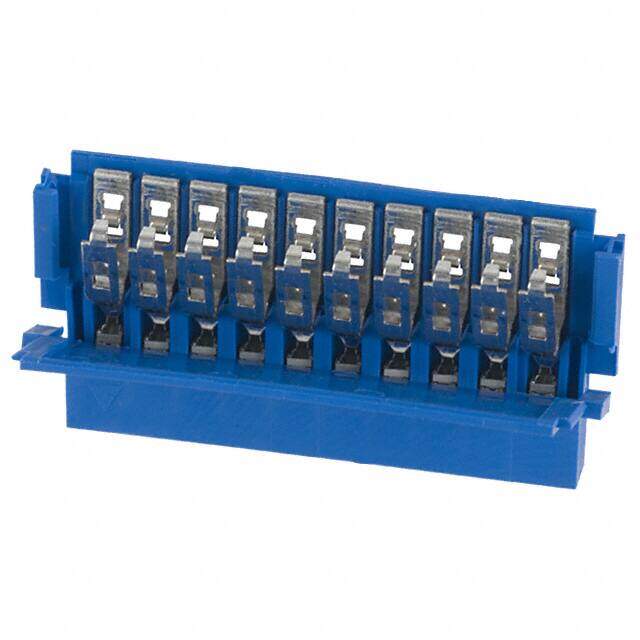

65801-010LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description
CONN FFC FPC RCPT 10POS 2.54MM
PDF
/
Buying Options
Total Price: USD $1.87
Unit Price: USD $1.8656
≥1 USD $1.8656
≥10 USD $1.62096
≥100 USD $1.551968
≥500 USD $1.517375
≥1000 USD $1.448436
≥3000 USD $1.310434
Inventory: 1185
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Nickel Alloy
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic
Technical
Operating Temperature -65°C~105°C
Packaging Tray
Published 2013
Series Clincher?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Number of Positions 10
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Blue
Number of Rows 1
Gender Receptacle
Voltage - Rated 500V
Current Rating (Amps) 2A
Pitch 0.100 2.54mm
Orientation Straight
Depth 15.49mm
Current Rating 2A
Contact Finish Tin
Lead Pitch 2.54mm
Number of Contacts 10
Housing Color Blue
Contact Resistance 15mOhm
Insulation Resistance 5GOhm
Max Voltage Rating (AC) 500V
Wire/Cable Type Flat
Mating Cycles 100
Flat Flex Type FFC, FPC
Connector/Contact Type Receptacle
Dimensions
Length 30.23mm
Width 2.54mm
Contact Finish Thickness 100.0μin 2.54μm
FFC, FCB Thickness 0.33mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
