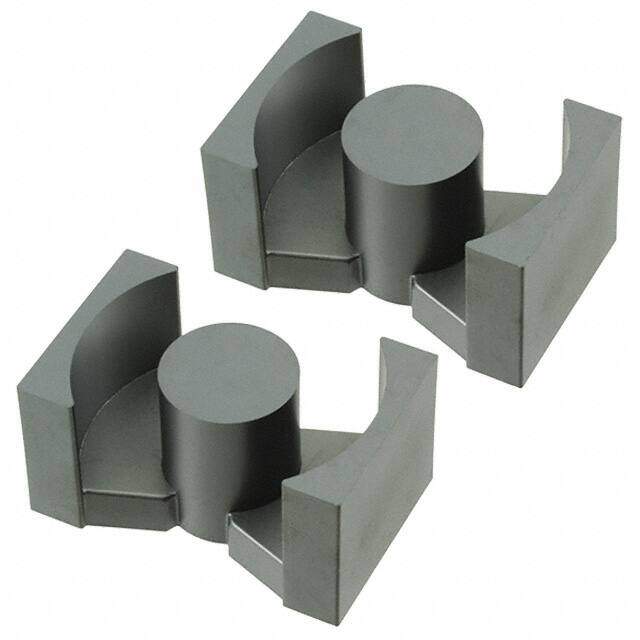

B65877A0000R049
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
Ferrite Cores & Accessories PQ26/25 N49
PDF
/
Buying Options
Total Price: USD $4.71
Unit Price: USD $4.708
≥1 USD $4.708
≥10 USD $4.01104
≥100 USD $3.070144
Inventory: 179
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 19.00mm
Length 26.50mm
Height 12.38mm
Technical
Effective Permeability (μe) 1235
Inductance Factor (Al) 3.3μH
Minimum Core Cross Section (Amin) mm2 108.7
Initial Permeability (μi) 1500
Core Factor (ΣI/A) mm1 0.44
Effective Magnetic Volume (Ve) mm3 6530
Effective Length (le) mm 53.6
Effective Area (Ae) mm2 122
Gap Ungapped
Core Type PQ
Finish Uncoated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance -20% +30%
Series B65877A
Published 2010
Physical
Material N49
Supplier Device Package PQ 26 x 25
Supply Chain
Factory Lead Time 24 Weeks
