B65819J0000Y038
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description

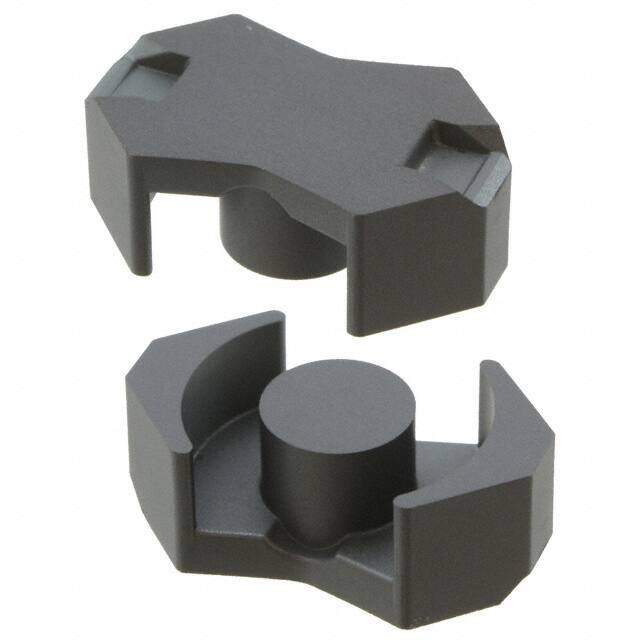

Ferrite RM7 Core (11.3x17.2mm) T38 AL=10000nH 40% -30% Ungapped
PDF
/
Inventory: 7224
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Supplier Device Package RM 7
Material T38
Technical
Series B65819
Tolerance -30% +40%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Finish Uncoated
Core Type RM
Gap Ungapped
Effective Area (Ae) mm2 43
Effective Length (le) mm 30.4
Effective Magnetic Volume (Ve) mm3 1310
Core Factor (ΣI/A) mm1 0.7
Initial Permeability (μi) 2300
Minimum Core Cross Section (Amin) mm2 39
Inductance Factor (Al) 10μH
Effective Permeability (μe) 5630
Dimensions
Height 6.75mm
Length 20.30mm
Compliance
RoHS Status ROHS3 Compliant
