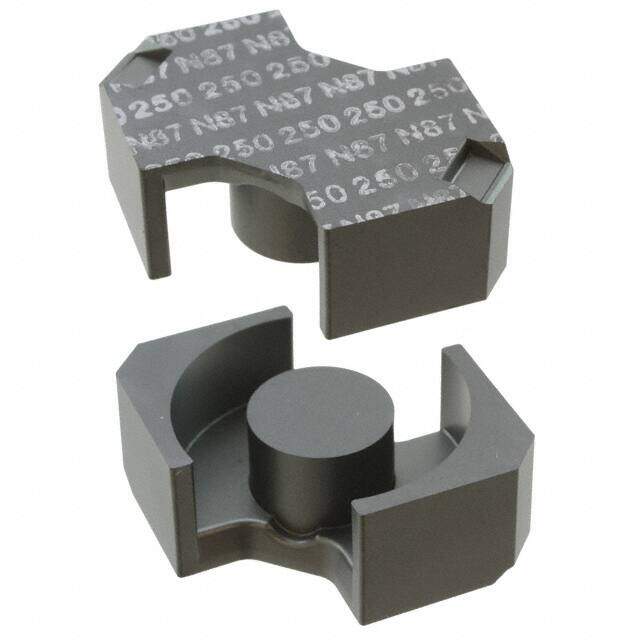

B65815E0250A087 image
Favorite
B65815E0250A087 image
Favorite

B65815E0250A087

TDK Electronics Inc.
RoHS
RoHS RoHS compliant
Package /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description EPCOS - B65815E0250A087 - FERRITE PERCEE RM12. N87
PDF
/
Buying Options
Total Price: USD $4.78
Unit Price: USD $4.7784
≥1 USD $4.7784
≥10 USD $4.06736
≥100 USD $3.094784
≥500 USD $3.006256
≥1000 USD $2.652584
≥3000 USD $2.47573
Inventory: 664
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 16.10mm
Length 37.60mm
Height 12.30mm

Technical

Core Factor (ΣI/A) mm1 0.39
Effective Magnetic Volume (Ve) mm3 8320
Effective Length (le) mm 57
Effective Area (Ae) mm2 146
Gap Gapped
Core Type RM
Finish Uncoated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series B65815

Physical

Material N87
Supplier Device Package RM 12

Supply Chain

Factory Lead Time 24 Weeks
