B65815E0160A087
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description

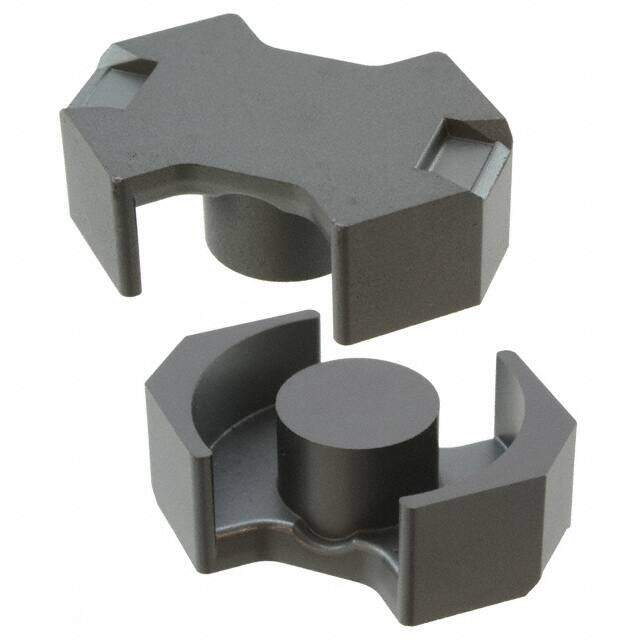

EPCOS B65815E0160A087 Transformer Cores, RM, RM12, N87, 57 mm, 146 mm
PDF
/
Buying Options
Total Price: USD $4.87
Unit Price: USD $4.8664
≥1 USD $4.8664
≥10 USD $4.1448
≥100 USD $3.153568
≥500 USD $3.063456
≥1000 USD $2.703096
≥3000 USD $2.522846
Inventory: 498
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 16.10mm
Length 37.60mm
Height 12.30mm
Technical
Minimum Core Cross Section (Amin) mm2 125
Initial Permeability (μi) 2200
Core Factor (ΣI/A) mm1 0.39
Effective Magnetic Volume (Ve) mm3 8320
Effective Length (le) mm 57
Effective Area (Ae) mm2 146
Core Type RM
Finish Uncoated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Physical
Material N87
Supplier Device Package RM 12
Supply Chain
Factory Lead Time 24 Weeks
