B65815E0000R030
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description

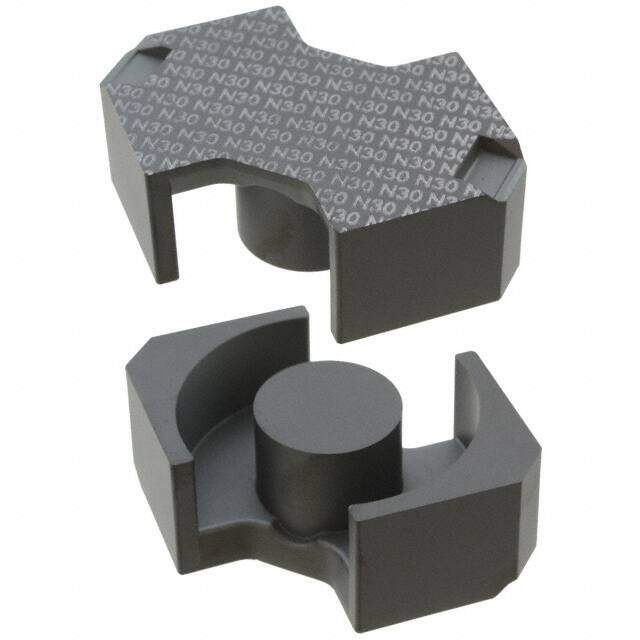

Ferrite Cores & Accessories RM12/I-N30 '+30%-20%
PDF
/
Buying Options
Total Price: USD $6.34
Unit Price: USD $6.336
≥1 USD $6.336
≥10 USD $5.39616
≥100 USD $4.105728
≥500 USD $3.988512
≥1000 USD $3.519208
≥3000 USD $3.2846
Inventory: 103
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 16.10mm
Length 37.60mm
Height 12.30mm
Technical
Effective Permeability (μe) 2700
Inductance Factor (Al) 8.7μH
Minimum Core Cross Section (Amin) mm2 125
Initial Permeability (μi) 4300
Core Factor (ΣI/A) mm1 0.39
Effective Magnetic Volume (Ve) mm3 8320
Effective Length (le) mm 57
Effective Area (Ae) mm2 146
Gap Ungapped
Core Type RM
Finish Uncoated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance -20% +30%
Series B65815
Physical
Material N30
Supplier Device Package RM 12
Supply Chain
Factory Lead Time 24 Weeks
