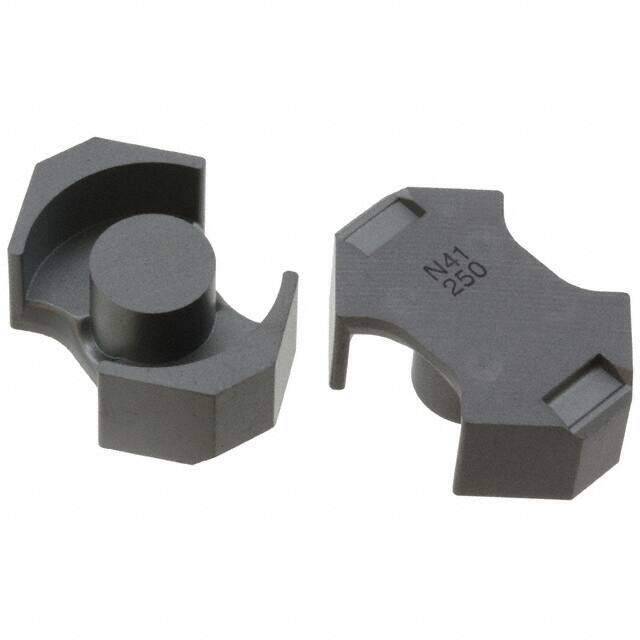

B65811J0250J041
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
Ferrite Core RM Core 23.2mm 16.5mm Transformer Applications
PDF
/
Buying Options
Total Price: USD $2.86
Unit Price: USD $2.86
≥1 USD $2.86
≥10 USD $2.44992
≥100 USD $1.83744
≥500 USD $1.786576
≥1000 USD $1.582372
≥3000 USD $1.480292
Inventory: 793
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Supplier Device Package RM 8
Material N41
Technical
Series B65811
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Finish Uncoated
Core Type RM
Gap Gapped
Effective Area (Ae) mm2 64
Effective Length (le) mm 38
Effective Magnetic Volume (Ve) mm3 2430
Core Factor (ΣI/A) mm1 0.59
Initial Permeability (μi) 2800
Minimum Core Cross Section (Amin) mm2 55
Inductance Factor (Al) 250nH
Effective Permeability (μe) 118
Dimensions
Height 8.25mm
Length 23.20mm
Width 11.00mm
Compliance
RoHS Status ROHS3 Compliant
