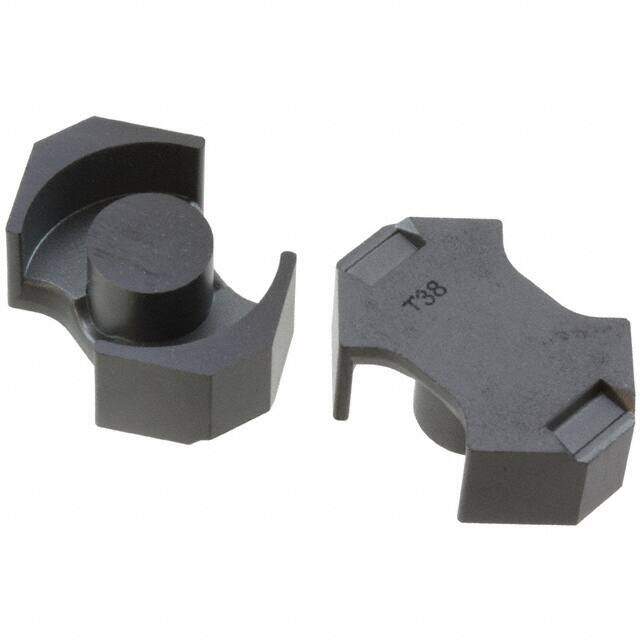

B65811J0000R097
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
Ferrite Cores & Accessories RM8/I-N97
PDF
/
Buying Options
Total Price: USD $2.96
Unit Price: USD $2.9568
≥1 USD $2.9568
≥10 USD $2.53352
≥100 USD $1.900448
≥500 USD $1.847648
≥1000 USD $1.636492
≥3000 USD $1.530936
Inventory: 288
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 11.00mm
Length 23.20mm
Height 8.25mm
Technical
Effective Permeability (μe) 1560
Inductance Factor (Al) 3.3μH
Minimum Core Cross Section (Amin) mm2 55
Initial Permeability (μi) 2300
Core Factor (ΣI/A) mm1 0.59
Effective Magnetic Volume (Ve) mm3 2430
Effective Length (le) mm 38
Effective Area (Ae) mm2 64
Gap Ungapped
Core Type RM
Finish Uncoated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance -20% +30%
Series B65811
Physical
Material N97
Supplier Device Package RM 8
Supply Chain
Factory Lead Time 24 Weeks
