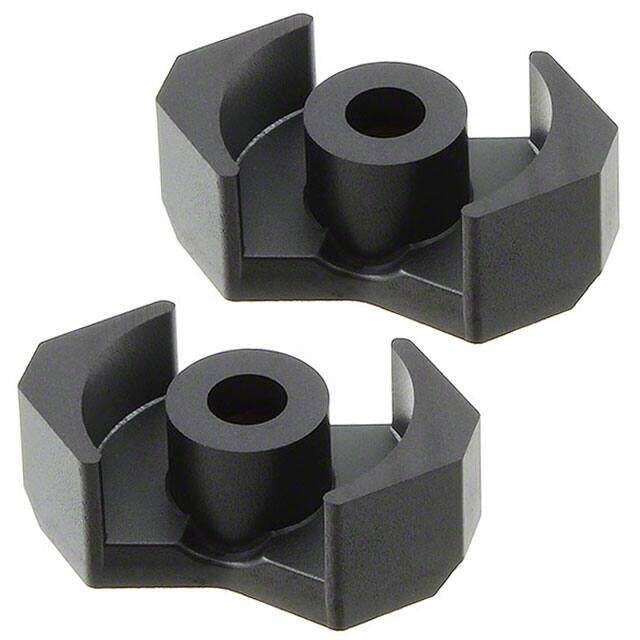

B65807N0400A048
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
Ferrite Core RM Core 17.9mm 12.5mm Transformer Applications
PDF
/
Buying Options
Total Price: USD $2.8
Unit Price: USD $2.7984
≥1 USD $2.7984
≥10 USD $2.39536
≥100 USD $1.796256
≥500 USD $1.746272
≥1000 USD $1.546776
≥3000 USD $1.447002
Inventory: 3669
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 8.20mm
Length 17.90mm
Height 6.25mm
Technical
Effective Permeability (μe) 274
Inductance Factor (Al) 400nH
Core Factor (ΣI/A) mm1 0.86
Effective Magnetic Volume (Ve) mm3 840
Effective Length (le) mm 26.9
Effective Area (Ae) mm2 31.3
Gap Gapped
Core Type RM
Finish Uncoated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±3%
Series B65807
Physical
Material N48
Supplier Device Package RM 6
Supply Chain
Factory Lead Time 24 Weeks
