B65807J0160A087
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description

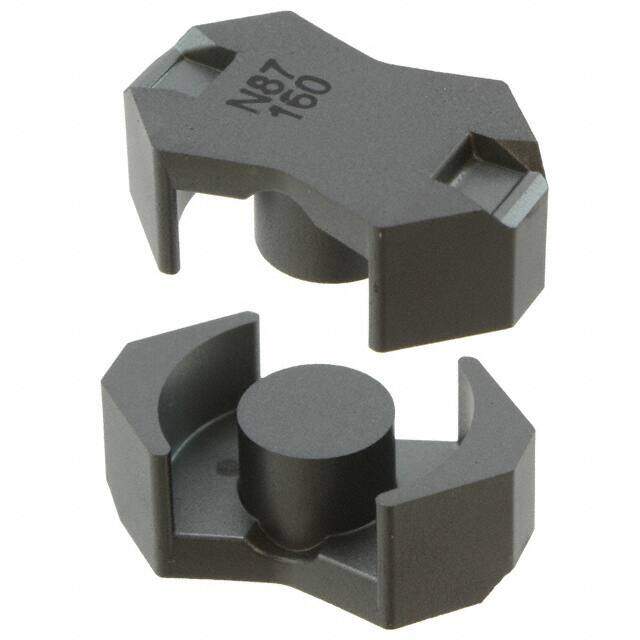

Ferrite RM6 Core (8.2x14.7mm) N87 AL=160nH 3%
PDF
/
Buying Options
Total Price: USD $2.3
Unit Price: USD $2.2968
≥1 USD $2.2968
≥10 USD $1.9668
≥100 USD $1.475232
≥500 USD $1.434048
≥1000 USD $1.270192
≥3000 USD $1.188246
Inventory: 1226
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 8.20mm
Length 17.90mm
Height 6.25mm
Technical
Effective Permeability (μe) 99
Inductance Factor (Al) 160nH
Minimum Core Cross Section (Amin) mm2 31
Core Factor (ΣI/A) mm1 0.78
Effective Magnetic Volume (Ve) mm3 1050
Effective Length (le) mm 28.6
Effective Area (Ae) mm2 36.6
Gap Gapped
Core Type RM
Finish Uncoated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±3%
Series B65807
Published 2015
Physical
Material N87
Supplier Device Package RM 6
Supply Chain
Factory Lead Time 24 Weeks
