B65807J0160A048
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description

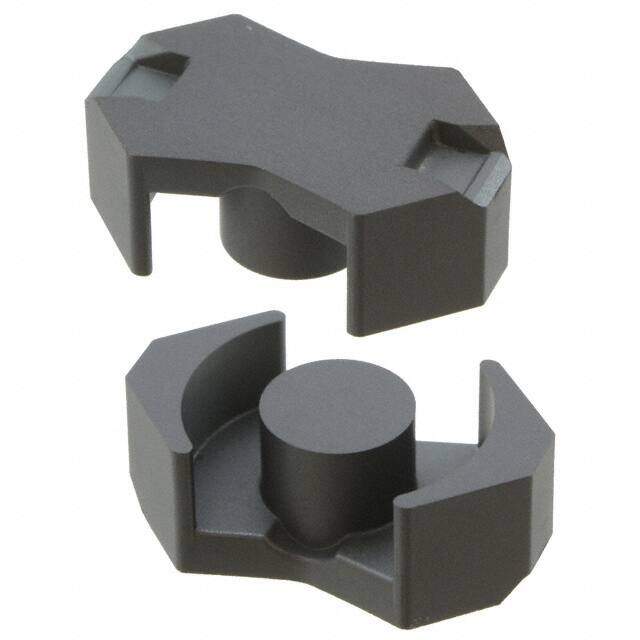

Ferrite Core RM Core 17.9mm 12.5mm Transformer Applications
PDF
/
Buying Options
Total Price: USD $2.55
Unit Price: USD $2.552
≥1 USD $2.552
≥10 USD $2.20264
≥100 USD $1.67376
≥500 USD $1.585584
≥1000 USD $1.409408
≥3000 USD $1.321338
Inventory: 3807
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Supplier Device Package RM 6
Material N48
Technical
Packaging Tape & Box (TB)
Series B65807
Tolerance ±3%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Finish Uncoated
Core Type RM
Gap Gapped
Effective Area (Ae) mm2 36.6
Effective Length (le) mm 28.6
Effective Magnetic Volume (Ve) mm3 1050
Core Factor (ΣI/A) mm1 0.78
Minimum Core Cross Section (Amin) mm2 31
Inductance Factor (Al) 160nH
Effective Permeability (μe) 109
Dimensions
Height 6.25mm
Length 17.90mm
Width 8.20mm
Compliance
RoHS Status ROHS3 Compliant
