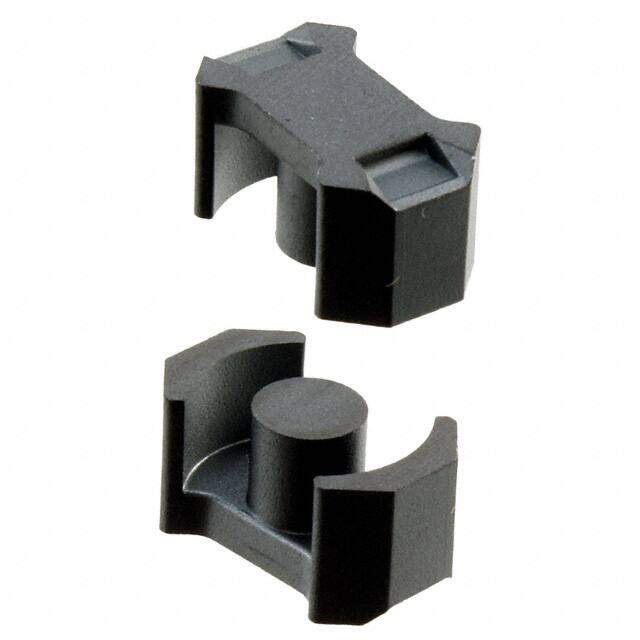

B65803J0000R030 image
Favorite
B65803J0000R030 image
Favorite

B65803J0000R030

TDK Electronics Inc.
RoHS
RoHS RoHS compliant
Package /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description RM 4, RM 4 LP CORES AND ACCESSORIES
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.7248
≥1 USD $1.7248
≥10 USD $1.48632
≥100 USD $1.129568
≥500 USD $1.070256
≥1000 USD $0.95128
≥3000 USD $0.891827
Inventory: 3882
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 27 Weeks

Physical

Supplier Device Package RM 4
Material N30

Technical

Series B65803
Tolerance -20% +30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Finish Uncoated
Core Type RM
Gap Ungapped
Effective Area (Ae) mm2 13
Effective Length (le) mm 22
Effective Magnetic Volume (Ve) mm3 286
Core Factor (ΣI/A) mm1 1.7
Initial Permeability (μi) 4300
Minimum Core Cross Section (Amin) mm2 11.3
Inductance Factor (Al) 1.9μH
Effective Permeability (μe) 2560

Dimensions

Height 5.25mm
Length 11.00mm
Width 4.60mm

Compliance

RoHS Status ROHS3 Compliant
