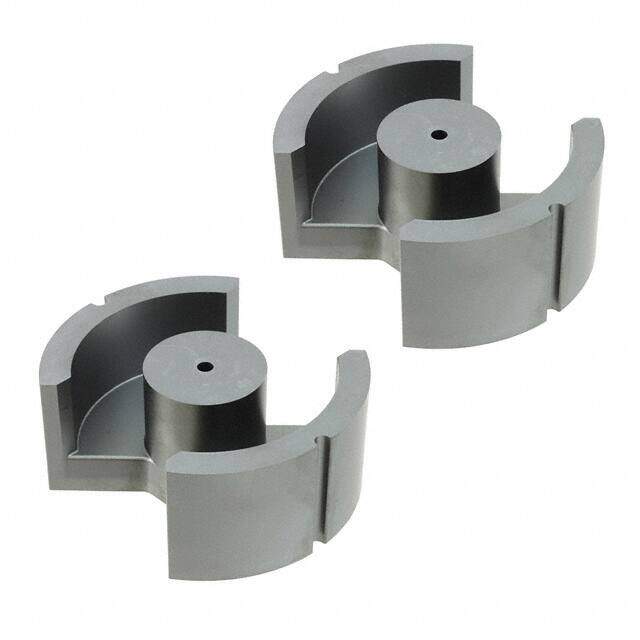

B65733A0000R087
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
Ferrite Core RM Core 114mm 93mm Power Transformer
PDF
/
Inventory: 6035
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Supplier Device Package PM 114 x 93
Material N87
Technical
Published 2013
Series B65733
Tolerance -20% +30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Finish Uncoated
Core Type PM
Gap Ungapped
Effective Area (Ae) mm2 1720
Effective Length (le) mm 200
Effective Magnetic Volume (Ve) mm3 344000
Core Factor (ΣI/A) mm1 0.116
Initial Permeability (μi) 2200
Minimum Core Cross Section (Amin) mm2 1380
Inductance Factor (Al) 16μH
Effective Permeability (μe) 1480
Dimensions
Diameter 114.00mm
Height 46.50mm
Compliance
RoHS Status ROHS3 Compliant
