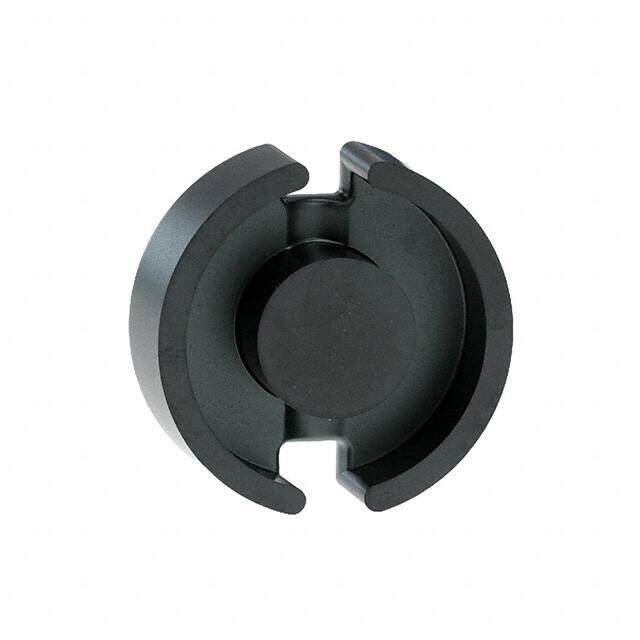

B65701W0000R087
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
Ferrite Cores & Accessories P 30X19 N87 6400 +30%-
PDF
/
Buying Options
Total Price: USD $5.76
Unit Price: USD $5.764
≥1 USD $5.764
≥10 USD $4.90952
≥100 USD $3.735424
≥500 USD $3.628768
≥1000 USD $3.20188
≥3000 USD $2.988427
Inventory: 656
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Supplier Device Package P 30 x 19
Material N87
Technical
Published 2013
Series B65701
Tolerance -20% +30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Finish Uncoated
Core Type P (Pot Core)
Gap Ungapped
Effective Area (Ae) mm2 145
Effective Length (le) mm 46
Effective Magnetic Volume (Ve) mm3 6670
Core Factor (ΣI/A) mm1 0.32
Initial Permeability (μi) 2200
Minimum Core Cross Section (Amin) mm2 117
Inductance Factor (Al) 6.4μH
Effective Permeability (μe) 1620
Dimensions
Diameter 30.50mm
Height 9.50mm
Compliance
RoHS Status ROHS3 Compliant
