B65701D0000R087
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description

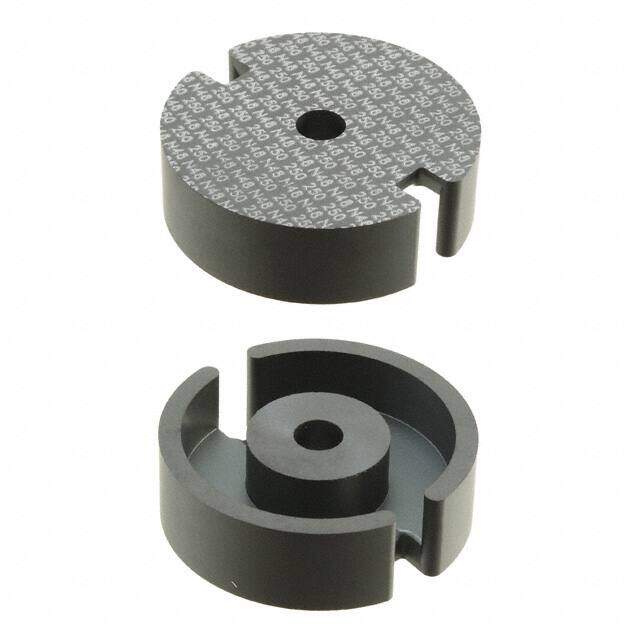

Ferrite P Core (30x19mm) N87 AL=6200nH Ungapped
PDF
/
Inventory: 6885
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 9.50mm
Diameter 30.50mm
Technical
Effective Permeability (μe) 1620
Inductance Factor (Al) 6.4μH
Initial Permeability (μi) 2200
Core Factor (ΣI/A) mm1 0.33
Effective Magnetic Volume (Ve) mm3 6120
Effective Length (le) mm 45
Effective Area (Ae) mm2 136
Gap Ungapped
Core Type P (Pot Core)
Finish Uncoated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance -20% +30%
Series B65701
Published 2013
Physical
Material N87
Supplier Device Package P 30 x 19
Supply Chain
Factory Lead Time 10 Weeks
