B65686A0000R027
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description

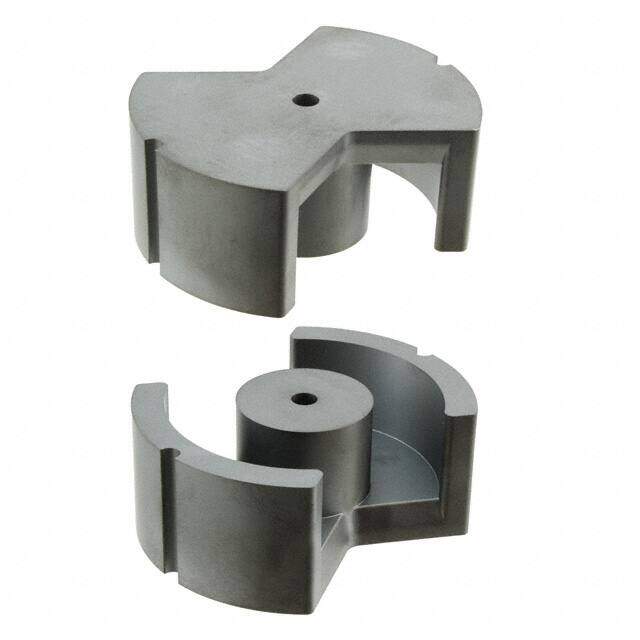

EPCOS B65686A0000R027 FERRITE CORE , PM 74 N27
PDF
/
Buying Options
Total Price: USD $62.14
Unit Price: USD $62.1368
≥1 USD $62.1368
≥10 USD $55.23144
≥100 USD $45.56552
≥500 USD $44.1848
≥1000 USD $38.661744
Inventory: 80
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Supplier Device Package PM 74 x 59
Material N27
Technical
Series B65686
Tolerance -20% +30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Finish Uncoated
Core Type PM
Gap Ungapped
Effective Area (Ae) mm2 790
Effective Length (le) mm 128
Effective Magnetic Volume (Ve) mm3 101000
Core Factor (ΣI/A) mm1 0.162
Initial Permeability (μi) 2000
Minimum Core Cross Section (Amin) mm2 630
Inductance Factor (Al) 10μH
Effective Permeability (μe) 1290
Dimensions
Diameter 74.00mm
Height 29.50mm
Compliance
RoHS Status ROHS3 Compliant
