B65684A0315A027

TDK Electronics Inc.
RoHS
RoHS RoHS compliant
Package /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores

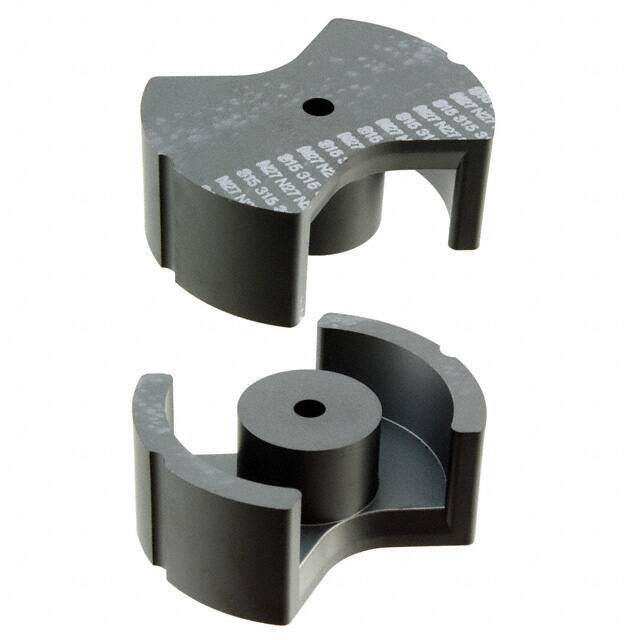

Description Ferrite Core PM Core 62mm 49mm Power Transformer/Energy Storage Choke
PDF
/
Buying Options
Total Price: USD $24.26
Unit Price: USD $24.2616
≥1 USD $24.2616
≥10 USD $21.70652
≥100 USD $16.599
≥500 USD $14.55608
≥1000 USD $14.187254
Inventory: 133
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height 24.50mm
Diameter 62.00mm

Technical

Effective Permeability (μe) 48
Inductance Factor (Al) 315nH
Minimum Core Cross Section (Amin) mm2 470
Initial Permeability (μi) 2000
Core Factor (ΣI/A) mm1 0.191
Effective Magnetic Volume (Ve) mm3 62000
Effective Length (le) mm 109
Effective Area (Ae) mm2 570
Gap Gapped
Core Type PM
Finish Uncoated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±3%
Series B65684

Physical

Material N27
Supplier Device Package PM 62 x 49

Supply Chain

Factory Lead Time 24 Weeks
