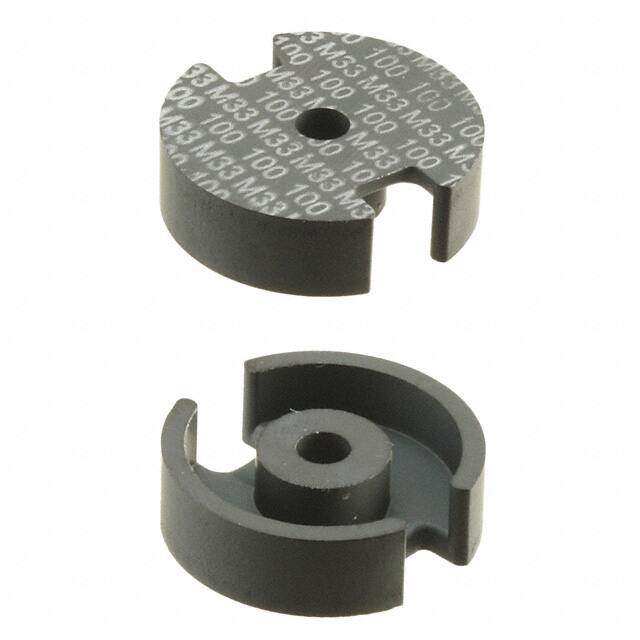

B65651T0100A033
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
Ferrite Cores & Accessories P 18X11 M33 100 +3% -3%
PDF
/
Buying Options
Total Price: USD $5.54
Unit Price: USD $5.544
≥1 USD $5.544
≥10 USD $4.72472
≥100 USD $3.594976
≥500 USD $3.492192
≥1000 USD $3.08132
≥3000 USD $2.87591
Inventory: 1856
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 47 Weeks
Physical
Supplier Device Package P 18 x 11
Material M33
Technical
Published 2013
Series B65651
Tolerance ±3%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Finish Uncoated
Core Type P (Pot Core)
Gap Gapped
Effective Area (Ae) mm2 43
Effective Length (le) mm 25.9
Effective Magnetic Volume (Ve) mm3 1114
Core Factor (ΣI/A) mm1 0.6
Initial Permeability (μi) 750
Inductance Factor (Al) 100nH
Effective Permeability (μe) 48
Dimensions
Diameter 18.40mm
Height 5.30mm
Compliance
RoHS Status ROHS3 Compliant
