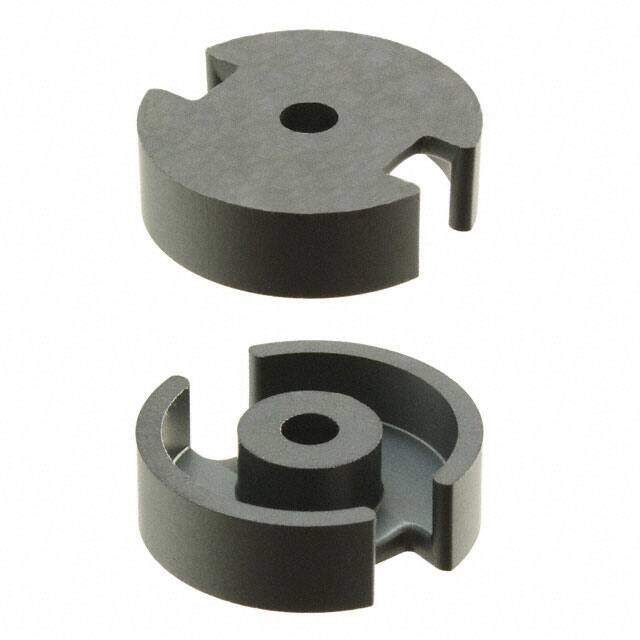

B65651D0000R048
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
Ferrite Cores & Accessories P18/11-N48 +30%-20%
PDF
/
Inventory: 7936
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 5.30mm
Diameter 18.40mm
Technical
Effective Permeability (μe) 1340
Inductance Factor (Al) 2.8μH
Core Factor (ΣI/A) mm1 0.6
Effective Magnetic Volume (Ve) mm3 1114
Effective Length (le) mm 25.9
Effective Area (Ae) mm2 43
Gap Ungapped
Core Type P (Pot Core)
Finish Uncoated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance -20% +30%
Series B65651
Published 2013
Physical
Material N48
Supplier Device Package P 18 x 11
Supply Chain
Factory Lead Time 13 Weeks
