B65541T0400A048
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description

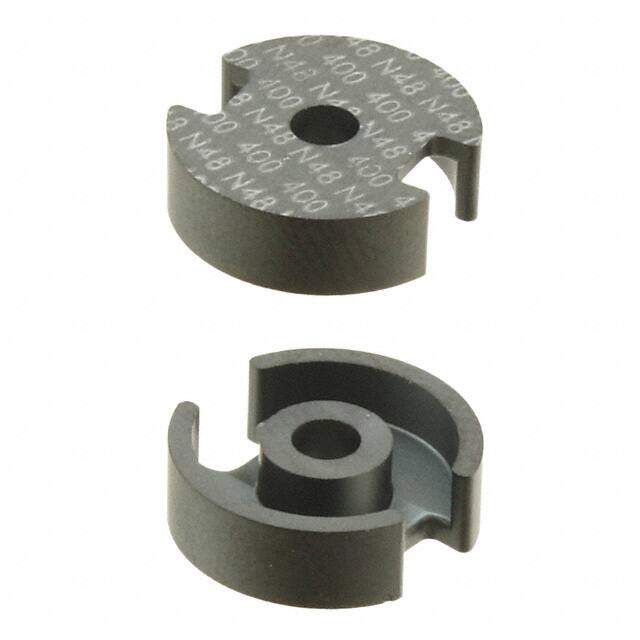

Ferrite Cores & Accessories P 14X8 N48 400 +3%-3%
PDF
/
Buying Options
Total Price: USD $2.76
Unit Price: USD $2.7632
≥1 USD $2.7632
≥10 USD $2.3672
≥100 USD $1.775136
≥500 USD $1.725856
≥1000 USD $1.528648
≥3000 USD $1.43
Inventory: 935
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 4.25mm
Diameter 14.30mm
Technical
Effective Permeability (μe) 255
Inductance Factor (Al) 400nH
Minimum Core Cross Section (Amin) mm2 20
Core Factor (ΣI/A) mm1 0.8
Effective Magnetic Volume (Ve) mm3 500
Effective Length (le) mm 20
Effective Area (Ae) mm2 25
Gap Gapped
Core Type P (Pot Core)
Finish Uncoated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±3%
Series B65541
Published 2013
Physical
Material N48
Supplier Device Package P 14 x 8
Supply Chain
Factory Lead Time 47 Weeks
