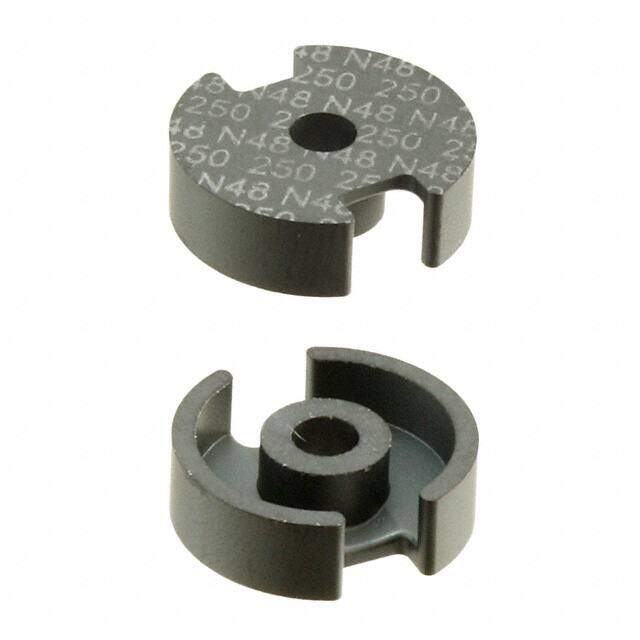

B65541T0250A048
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
Ferrite Cores & Accessories P 14X8 N48 250 +3%-3%
PDF
/
Buying Options
Total Price: USD $2.76
Unit Price: USD $2.7632
≥1 USD $2.7632
≥10 USD $2.3672
≥100 USD $1.775136
≥500 USD $1.725856
≥1000 USD $1.528648
≥3000 USD $1.43
Inventory: 499
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 47 Weeks
Physical
Supplier Device Package P 14 x 8
Material N48
Technical
Published 2013
Series B65541
Tolerance ±3%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Finish Uncoated
Core Type P (Pot Core)
Gap Gapped
Effective Area (Ae) mm2 25
Effective Length (le) mm 20
Effective Magnetic Volume (Ve) mm3 500
Core Factor (ΣI/A) mm1 0.8
Minimum Core Cross Section (Amin) mm2 20
Inductance Factor (Al) 250nH
Effective Permeability (μe) 159
Dimensions
Diameter 14.30mm
Height 4.25mm
Compliance
RoHS Status ROHS3 Compliant
