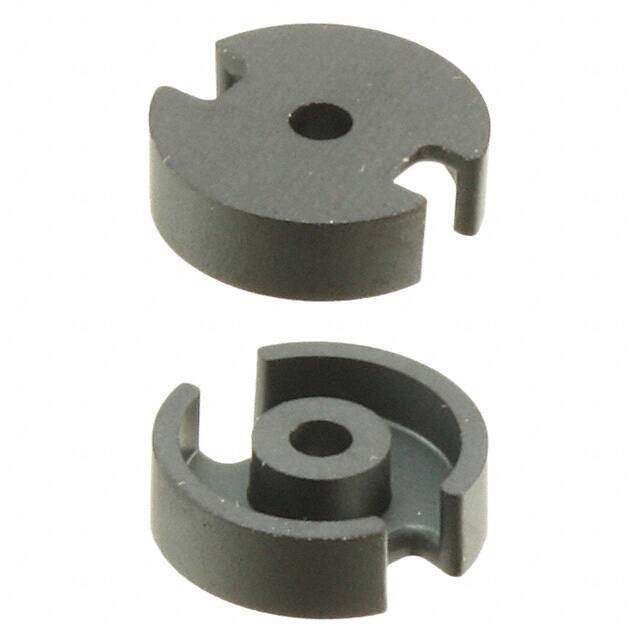

B65531D0160A048 image
Favorite
B65531D0160A048 image
Favorite

B65531D0160A048

TDK Electronics Inc.
RoHS
RoHS RoHS compliant
Package /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description Ferrite Cores & Accessories P 11X7 N48 160 +3% -3%
PDF
/
Buying Options
Total Price: USD $1.5
Unit Price: USD $1.496
≥1 USD $1.496
≥10 USD $1.28832
≥100 USD $0.978912
≥500 USD $0.927344
≥1000 USD $0.907104
Inventory: 3010
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height 3.30mm
Diameter 11.30mm

Technical

Effective Permeability (μe) 127
Inductance Factor (Al) 160nH
Core Factor (ΣI/A) mm1 1
Effective Magnetic Volume (Ve) mm3 253
Effective Length (le) mm 15.9
Effective Area (Ae) mm2 15.9
Gap Gapped
Core Type P (Pot Core)
Finish Uncoated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±3%
Series B65531

Physical

Material N48
Supplier Device Package P 11 x 7

Supply Chain

Factory Lead Time 24 Weeks
