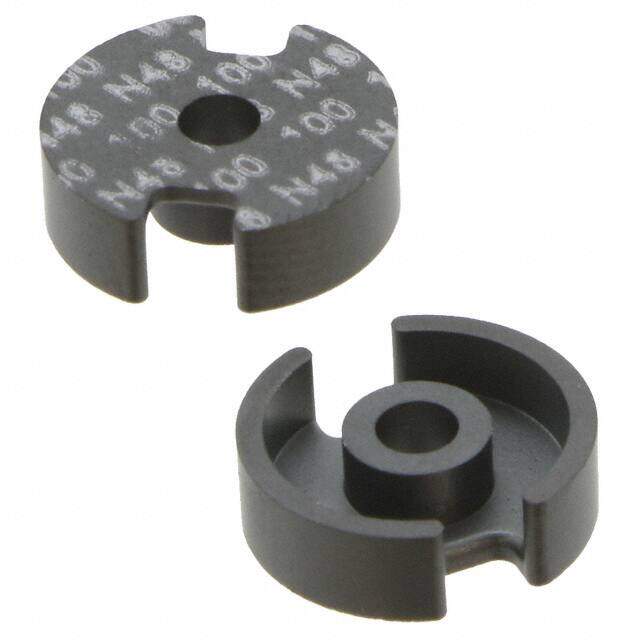

B65517D0100A048
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
Ferrite Cores & Accessories P9X5 N48 100 + 3%-3%
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.3376
≥1 USD $1.3376
≥10 USD $1.15368
≥100 USD $0.876832
≥500 USD $0.83072
≥1000 USD $0.812416
Inventory: 9395
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 2.70mm
Diameter 9.30mm
Technical
Effective Permeability (μe) 100
Inductance Factor (Al) 100nH
Core Factor (ΣI/A) mm1 1.25
Effective Magnetic Volume (Ve) mm3 125
Effective Length (le) mm 12.5
Effective Area (Ae) mm2 10
Gap Gapped
Core Type P (Pot Core)
Finish Uncoated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±3%
Series B65517
Published 2013
Physical
Material N48
Supplier Device Package P 9 x 5
Supply Chain
Factory Lead Time 42 Weeks
