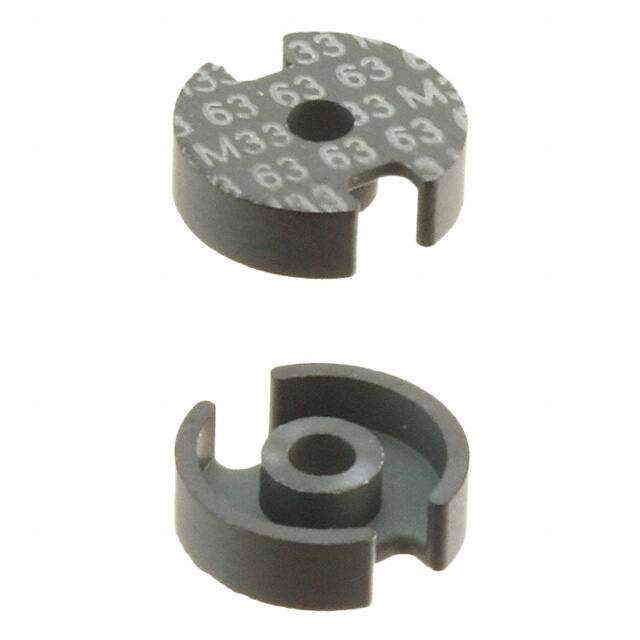

B65517D0063A033 image
Favorite
B65517D0063A033 image
Favorite

B65517D0063A033

TDK Electronics Inc.
RoHS
RoHS RoHS compliant
Package /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description EPCOS B65517D0063A033Transformer Cores, P, P9/5, M33, 12.5 mm, 10 mm
PDF
/
Buying Options
Total Price: USD $2.22
Unit Price: USD $2.2176
≥1 USD $2.2176
≥10 USD $1.90872
≥100 USD $1.450592
≥500 USD $1.374208
≥1000 USD $1.221616
≥3000 USD $1.145232
Inventory: 72
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 42 Weeks

Physical

Supplier Device Package P 9 x 5
Material M33

Technical

Published 2013
Series B65517
Tolerance ±3%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Finish Uncoated
Core Type P (Pot Core)
Gap Gapped
Effective Area (Ae) mm2 10
Effective Length (le) mm 12.5
Effective Magnetic Volume (Ve) mm3 125
Core Factor (ΣI/A) mm1 1.25
Initial Permeability (μi) 750
Inductance Factor (Al) 63nH
Effective Permeability (μe) 63

Dimensions

Diameter 9.30mm
Height 2.70mm

Compliance

RoHS Status ROHS3 Compliant
