B64290P0035X830
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description

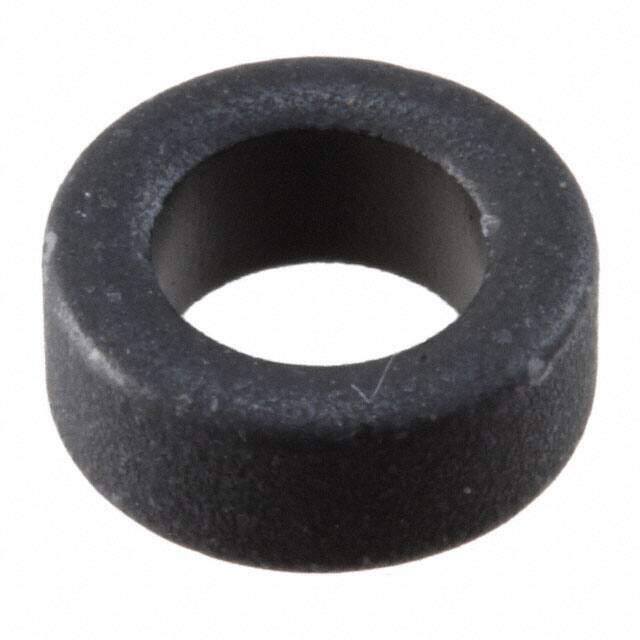

Ferrite Toroids / Ferrite Rings 2.5 X 1.5 X 1.0 TOROID
PDF
/
Inventory: 6890
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Diameter - Inside 1.5 mm
Height 1.02mm
Diameter 2.52mm
Technical
Inductance Factor (Al) 440nH
Initial Permeability (μi) 4300
Core Factor (ΣI/A) mm1 12.3
Effective Magnetic Volume (Ve) mm3 3
Effective Length (le) mm 6.02
Effective Area (Ae) mm2 0.49
Gap Ungapped
Core Type Toroid
Finish Parylene
Outside Diameter 2.5 mm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±25%
Series B64290
Published 2013
Physical
Material N30
Supply Chain
Lifecycle Status PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 24 Weeks
