B64290L0743X830
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description

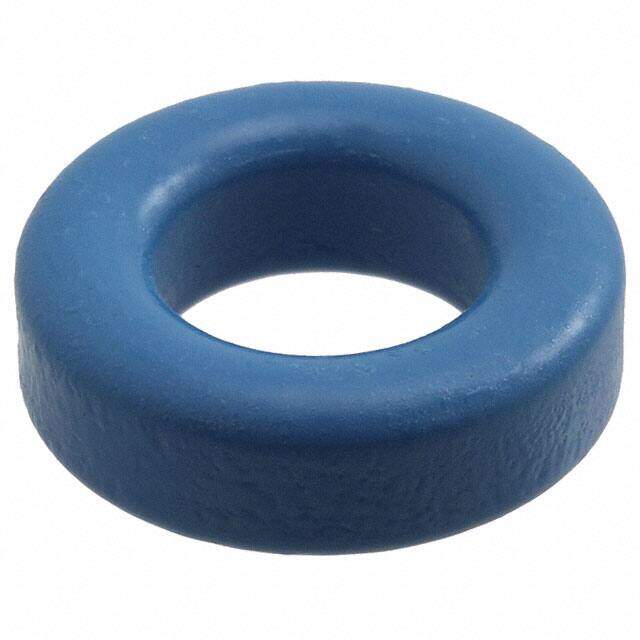

Ferrite Core Toroid Core 5.45mm 16.8mm General Application
PDF
/
Inventory: 8478
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 5.45mm
Diameter 16.80mm
Technical
Inductance Factor (Al) 2.32μH
Initial Permeability (μi) 4300
Core Factor (ΣI/A) mm1 2.33
Effective Magnetic Volume (Ve) mm3 580
Effective Length (le) mm 36.75
Effective Area (Ae) mm2 15.78
Gap Ungapped
Core Type Toroid
Finish Epoxy
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±25%
Series B64290
Published 2014
Physical
Material N30
Supply Chain
Factory Lead Time 24 Weeks
