B64290L0674X830
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description

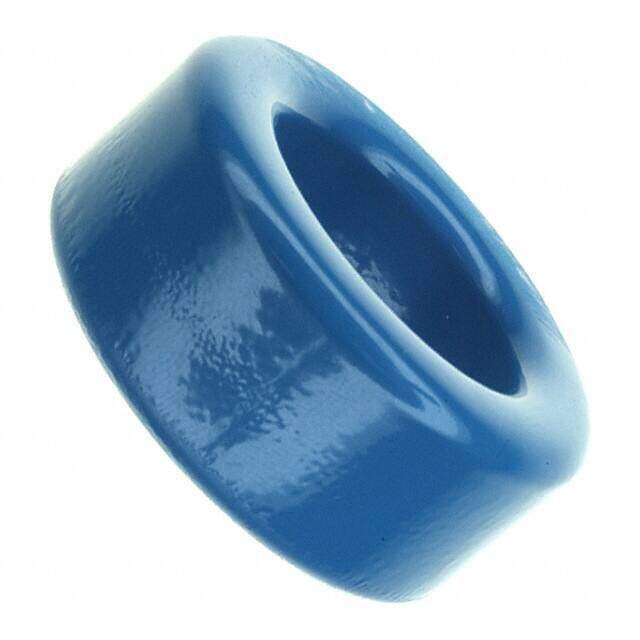

Ferrite toroidal core N30, B64290-L674-X830, EPCOS
PDF
/
Buying Options
Total Price: USD $5.2
Unit Price: USD $5.2008
≥1 USD $5.2008
≥10 USD $4.4308
≥100 USD $3.371104
≥500 USD $3.27492
≥1000 USD $2.889656
≥3000 USD $2.697024
Inventory: 1173
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 16.20mm
Diameter 37.50mm
Technical
Inductance Factor (Al) 5.75μH
Initial Permeability (μi) 4300
Core Factor (ΣI/A) mm1 0.94
Effective Magnetic Volume (Ve) mm3 8597
Effective Length (le) mm 89.65
Effective Area (Ae) mm2 95.89
Gap Ungapped
Core Type Toroid
Finish Epoxy
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±25%
Series B64290
Physical
Material N30
Supply Chain
Factory Lead Time 24 Weeks
