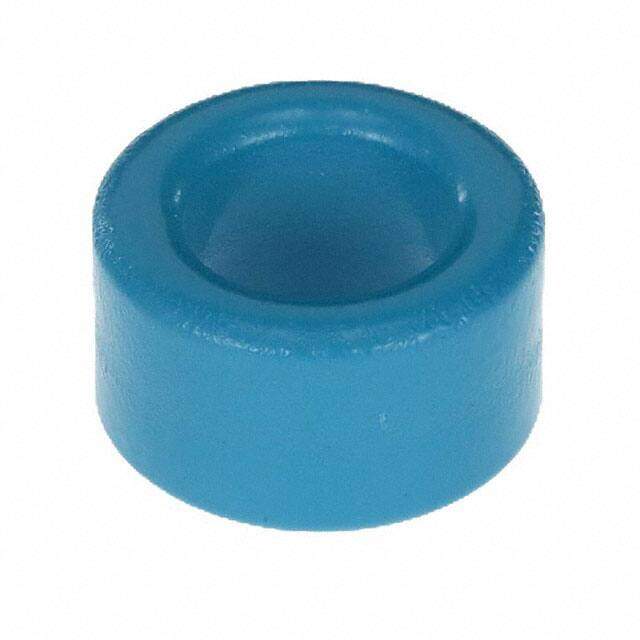

B64290L0651X065
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
Ferrite Core Toroid Core 13.8mm 23.3mm General Application
PDF
/
Buying Options
Total Price: USD $1.74
Unit Price: USD $1.7424
≥1 USD $1.7424
≥10 USD $1.49864
≥100 USD $1.139072
≥500 USD $1.079056
≥1000 USD $1.055472
Inventory: 892
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Material T65
Technical
Series B64290
Tolerance ±30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Finish Epoxy
Core Type Toroid
Gap Ungapped
Effective Area (Ae) mm2 51.15
Effective Length (le) mm 54.15
Effective Magnetic Volume (Ve) mm3 2789
Core Factor (ΣI/A) mm1 1.05
Initial Permeability (μi) 5200
Inductance Factor (Al) 6.2μH
Dimensions
Diameter 23.30mm
Height 13.80mm
Compliance
RoHS Status ROHS3 Compliant
