B64290L0615X038
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description

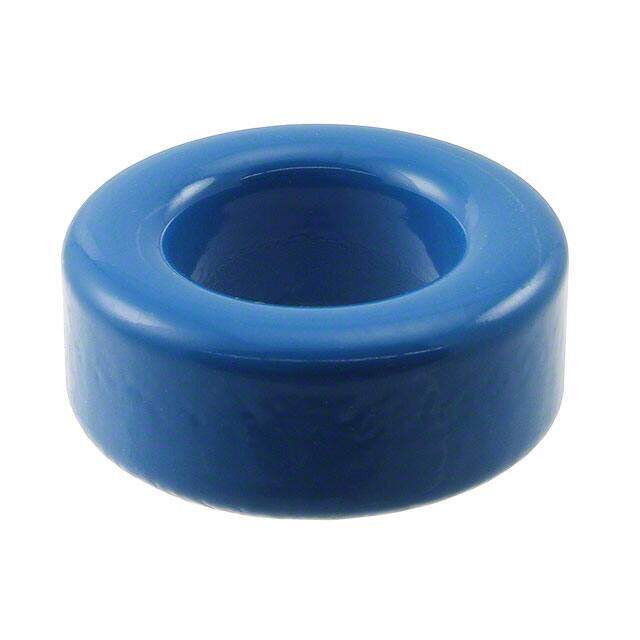

Ferrite Core Toroid Core 16.2mm 26.6mm General Application
PDF
/
Buying Options
Total Price: USD $2.52
Unit Price: USD $2.5168
≥1 USD $2.5168
≥10 USD $2.15512
≥100 USD $1.616032
≥500 USD $1.571152
≥1000 USD $1.391632
≥3000 USD $1.30181
Inventory: 73
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Material T38
Technical
Published 2014
Series B64290
Tolerance ±30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Finish Epoxy
Core Type Toroid
Gap Ungapped
Effective Area (Ae) mm2 76.89
Effective Length (le) mm 60.07
Effective Magnetic Volume (Ve) mm3 4619
Core Factor (ΣI/A) mm1 0.78
Initial Permeability (μi) 10000
Inductance Factor (Al) 16.1μH
Dimensions
Diameter 26.60mm
Height 16.20mm
Compliance
RoHS Status ROHS3 Compliant
