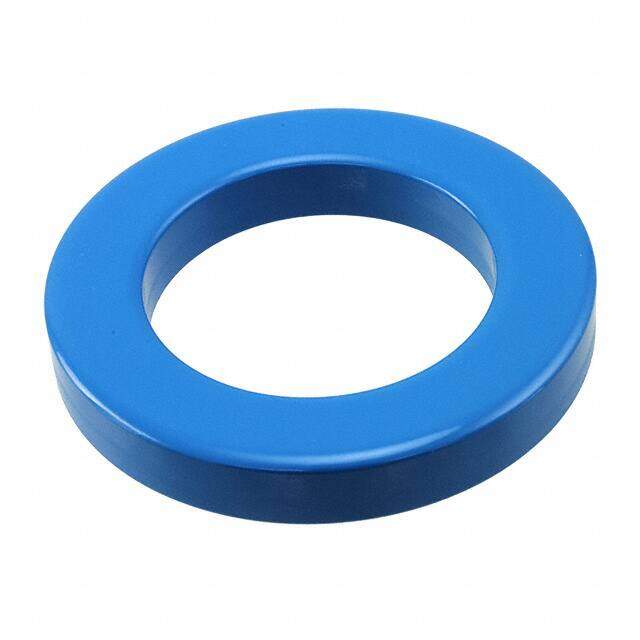

B64290L0084X087
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
Ferrite Toroids / Ferrite Rings 102/65.8/15 N87 TOROID
PDF
/
Buying Options
Total Price: USD $30.92
Unit Price: USD $30.9232
≥1 USD $30.9232
≥10 USD $27.665
≥100 USD $21.8064
≥500 USD $21.15549
≥1000 USD $18.551702
≥3000 USD $18.081589
Inventory: 129
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Material N87
Technical
Published 2014
Series B64290
Tolerance ±25%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Finish Epoxy
Core Type Toroid
Gap Ungapped
Effective Area (Ae) mm2 267.2
Effective Length (le) mm 255.3
Effective Magnetic Volume (Ve) mm3 68220
Core Factor (ΣI/A) mm1 0.96
Initial Permeability (μi) 2200
Inductance Factor (Al) 2.88μH
Dimensions
Diameter 104.80mm
Height 16.50mm
Compliance
RoHS Status ROHS3 Compliant
