B64290L0045X027
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description

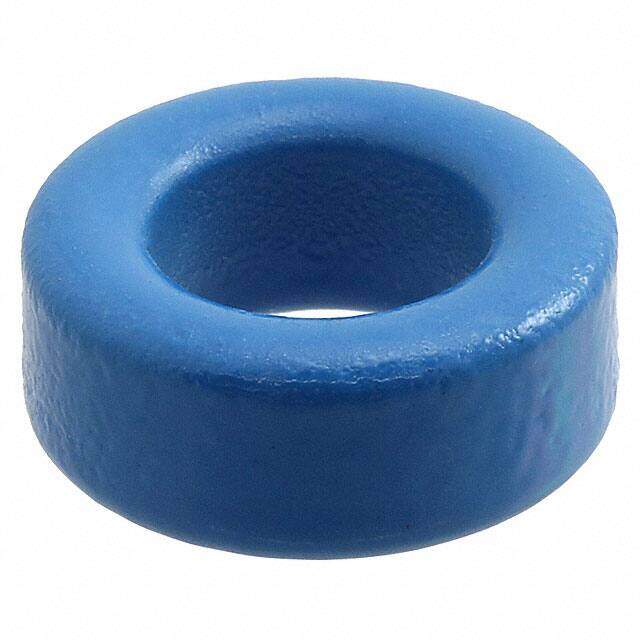

Ferrite Toroids / Ferrite Rings 16X9.6X6.3 N27 TOROID
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.616
≥1 USD $0.616
≥10 USD $0.5192
≥100 USD $0.444928
≥500 USD $0.39864
≥1000 USD $0.352264
≥3000 USD $0.315181
Inventory: 868
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 7.30mm
Diameter 17.20mm
Technical
Inductance Factor (Al) 1.29μH
Initial Permeability (μi) 2000
Core Factor (ΣI/A) mm1 1.95
Effective Magnetic Volume (Ve) mm3 760
Effective Length (le) mm 38.52
Effective Area (Ae) mm2 19.73
Gap Ungapped
Core Type Toroid
Finish Epoxy
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±25%
Series B64290
Physical
Material N27
Supply Chain
Factory Lead Time 31 Weeks
